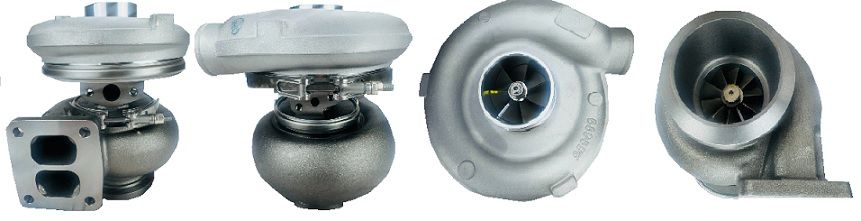

Caterpillar Excavator Earth Moving S330W064 Turbo 171169

Caterpillar Excavator Earth Moving S330W064 Turbo 171169
Item# turbo-earth-moving-cat-TC-171169
$958.42
Availability: Usually ships the next business day

Product Description


Part Number171169
OE number0R9795, 1760389, 176-0389
DescriptionEarth Moving
CHRA317376 (173307, 178200, 167381, 0R6883, 1138315, 2191909, 58444, 478200, 10R0920) $450.00 NEW IN STOCK, MADE IN USA
Turbo Model S330W064
Prefix2ZM, 5YM, 6SK, 6WJ, 8FK, 8RL, 9ML, 9NG, 9PJ, 9WJ, 9WS, 64Z, 1JS, 2RR, 3YR, 4RS, 5EZ, 5LR, 5LS, 6DR, 8SR, 8TR, 9HN, AME, 99Z, MGC
Machine Engine 3306
FuelDiesel
Excavator330B, 330B L, 330B LN, W330B
Machine Engine3306
S/N10Z34515-UP, R6J1-UP, 10Z1-UP, 13Z1-UP, 6NC1-UP, 08Z1-UP, 6NC16492-UP, 13Z47253-UP, 2191909, 1138315 CARTRIDGE GP 1100.91, 6DR00001-UP, 3YR00001-UP, 4RS00001-UP, AME00001-UP, 2ZM00001-UP, 1JS00001-UP, 3YR00001-UP, 8FK00001-UP, 6WJ00001-UP, 8SR00001-UP
Bearing Housing167517 (Oil Cooled) $162.80 NEW IN STOCK
Turbine Wheel166493 (1139329)(Ind. 76.2 mm, Exd. 68.8 mm, 10 Blades) $165.00 NEW IN STOCK
Comp. Wheel167410 (Ind. 59.06 mm, Exd. 86.39 mm, Trm 8.92, 6+6 Blades, (oe 7/7)) $142.90 NEW IN STOCK
Back plate 199646 (30-05718) $19.00 NEW IN STOCK
Heat shield Number197394 (7C9531) $17.45 NEW IN STOCK
Repair Kit318389 (176392)(1252203750) $98.40 NEW IN STOCK
Turbine Housing166492 (1021720) $746.81
Compressor Cover167383 (1138317) $440.14
Gasket (turbine inlet)132040 (202873, 205396, 205396, 3500683, 210017-0000, 409038-0000, 1S4295, 9749)(1900000003) $14.21
Gasket oil inlet129119 (210019, 201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 129120)(417378 Replaced by 420641)(1900000035) $4.38
Gasket (oil outlet)129120 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(417381 Replaced by 1543360)(1900000025) $4.38
ManufacturerBorg Warner - 3K - Schwitzer
ConditionNEW IN STOCK, MADE IN USA

Applications

Caterpillar Earth Moving with 3306 Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
