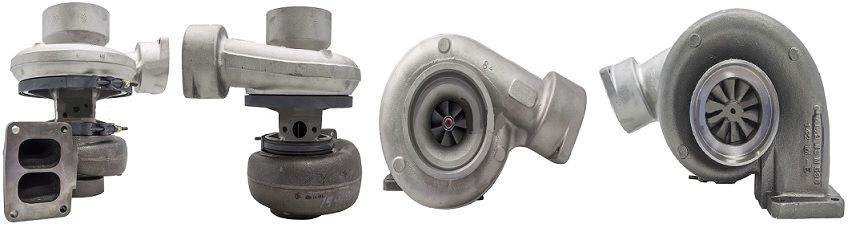

For Phone order call 818-506-8005 1-877-42TURBO(TOLL Free)Caterpillar Truck, Earth Moving S4DS022 Turbo 198892
Product Description
| Part Number | 198892 |
| Previous versions | 198891, 198892R |
| OE number | 7E9169, 0R6370, 0R-6370, 7E-9169 |
| Description | Truck Engine, Earth Moving |
| CHRA | 198893 (314804, 198893R, 178235)(7E9167, 0R6338) $1180.69 NEW IN STOCK |
| Turbo Model | S4DS022 |
| Prefix | 63Z |
| Truck Engine | 3306; 3306B |
| Fuel | Diesel |
| S/N | 63Z19290-22741 |
| Bearing Housing | 196939 (194032)(7E9165)(Oil-Cooled) $442.31 NEW IN STOCK |
| Turbine Wheel | 191609 (7W8844)(Ind. 72. mm, Exd. 83.43 mm, 10 Blades)(1100016333) $253.12 NEW IN STOCK |
| Comp. Wheel | 193947 (7E9166)(Ind. 60.92 mm, Exd. 91.43 mm, Trm 10.66, 6+6 Blades)(1200016467) $185.42 NEW IN STOCK |
| Back plate | 197651 (51135, 142066, 5S4556, 52321523000, 52321523001, 49162-22500, 1250403300, 143044-0000)(1800016004) $21.77 NEW IN STOCK |
| Heat shield Number | 187517 (4W7355)(2030016142) $27.35 NEW IN STOCK |
| Repair Kit | 318405 (318406, 318409)(311144)(1252419755, 5000030123) $123.00 NEW IN STOCK |
| Turbine Housing | 194143 (7W9447) $598.01 NEW IN STOCK |
| Turbine Housing | 194313 (1W8843, 7W8843) $598.01 NEW IN STOCK |
| Compressor Cover | 199041 (7E9168) $496.94 |
| Turbine Housing AR | 1.42 A/R |
| Gasket (turbine inlet) | 409038-0000 (9749, 1S4295, 202873, 205396, 3500683, 132040, 210017-0000)(1900000003) $13.20 |
| Gasket (oil outlet) | 129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 52231586500, 129120)(1900000035) $4.38 |
| Gasket (oil inlet) | 210018 (129120, 210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763) (1900000025) $4.38 |
| Manufacturer | Borg Warner - 3K - Schwitzer |
Caterpillar Truck Engine 3306,3306B There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received. This part comes with ONE YEAR unlimited mileage warranty.Applications
Core Charge
Warranty
