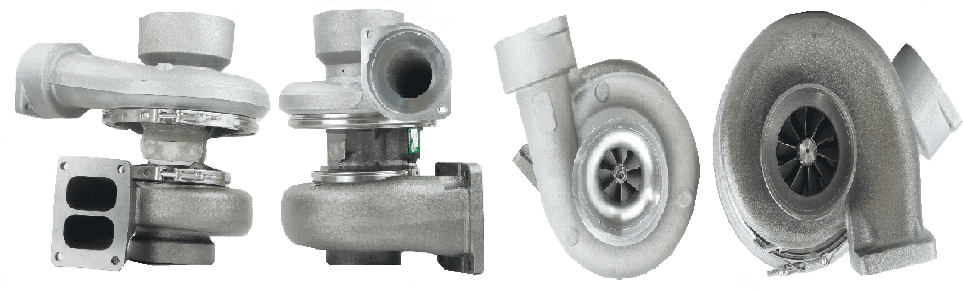

1987-02 Caterpillar Earth Moving S4DS011 Turbo 311161

1987-02 Caterpillar Earth Moving S4DS011 Turbo 311161
Item# turbo-earth-moving-cat-TC-311161
$1,463.40
Availability: Usually ships the next business day

Product Description


,
Part Number311161
OE number 7C7580, 0R5949
Year 1987-02
Description Earth Moving
Manufacturer Part Number196554
CHRA196538 (178223, 7C7598, 0R5722) $846.51 NEW IN STOCK
Turbo Model S4DS011
Engine3306
Generator Set 3306, 3306B
Wheel Scraper 637E, 3306
Wheel Tractor-Scraper 615C, 621S
Industrial Engine 3306
Excavators330, 330 L AND 330 LN
Track-Type Excavators330, 330L
Challenger 65B
S/N 6NC1-UP, 08Z1-UP, 9NR1-UP, 85Z3764-UP, 64Z5745-UP, 8TD1320-UP, 8Z39170-UP, 5JC549-UP, 08Z69300-89170, 08Z42420-99999, 08Z39170-99999, 85Z3513-3763, 85Z00001-03763, 1HB00001-00690, 5JC00001-UP, 7YC00001-01899, 2TF00001-00971, 2XG00001-UP, 2AJ00001-UP, 7YC01900-UP, 64Z05381-UP, 85Z03764-UP, 8JJ00001-UP, 8FK00001-UP, 2EL00001-UP, 2XG00898-UP, 2ZM00001-UP, 9NR00001-UP, 2XG00001-UP, 6SK00001-UP, 8RL00001-UP
Bearing Housing196661 (199144, 196534,7C7611, 4P3627, 7C0067) $454.34
Turbine Wheel191609 (7W8844) $653.12
Comp. Wheel194312 (7W8845) $298.16
Back plate197651 (5S-4556) $72.70
Heat Shield187517 (4W7355) $19.62
Repair Kit 318405/318409 (1252419750, 311144) $123.00 NEW IN STOCK
Turbine Housing194143 (7W9447) $624.71
Compressor Cover 194311 (7W8842) $496.94
Gasket (turbine inlet)409038-0000 (132040, 52231083002) $17.21
Gasket oil inlet210019 (129119) $8.40
Gasket (oil outlet)210018 (129120) $8.22
NOTEAlso 0R5949, use 194773
ManufacturerBorg Warner - 3K - Schwitzer

Applications

1987-02 Caterpillar Earth Moving with 3306 Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
