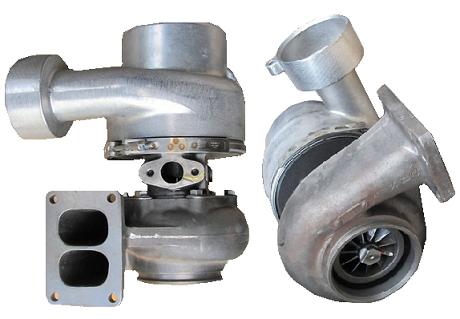

Caterpillar D7E Dozer , D330B T1210 Turbo 405490-0015

Caterpillar D7E Dozer , D330B T1210 Turbo 405490-0015
Item# turbo-earth-moving-cat-TC-405490-0015
$1,963.40
Availability: Usually ships the next business day

Product Description


Part Number405490-5015S
Previous Part Number 405490-0015, 405490-0002, 405490-0005, 405490-15, 405490-2, 405490-5
OE number 4S9705, 4S-9705, 3S4005
DescriptionD330A, D330B-Industrial, Marine, 1670-Truck Earth Moving
CHRA407505-0020 (407505-9020S, 406286-0001, 406867-0001, 406867-0008, 406286-0051, 406867-0051, 3S7577, 4S5384, 4S9703, 5S0498, 7N7249, 7N7250, 0R5914, 8S6060, 112001-0000)(1100120700) $1,240.52 NEW IN STOCK
Turbo Model T1210
Engine D330A
Fuel Diesel
Displacement 7.0L, 4L Cylinders
Fuel Diesel
S/N 82B00001-00287, 86B00001-UP
Angle α (compressor housing) 306º
Angle β (turbine housing)90º
Bearing Housing406866-0004 (7N7252, 3S4480, 4S9702, 112023-0000)(Oil Cooled)(1100120450) $386.26 NEW IN STOCK
Turbine Wheel406845-0001 (406845-0007, 112010-0000)(33164068457, 4S9701)(1100120435) $233.04 NEW IN STOCK
Comp. Wheel408126-0014 (3S4481)(406156-0004)(Ind. 51.87 mm, Exd. 84.12 mm, Trm 2.87, 8+8 Blades, Superback)(1100120400) $199.56 NEW IN STOCK
Back plate406834-0002 (8S5169, 3S4486)(1100120300) $114.80 NEW IN STOCK
Heat shield Number 409368-0000 (3S4490, 9S9327, 7N3760, 407574-0002, 407778-0001, 112121-0000)(1100120340) $62.52 NEW IN STOCK
Repair Kit468109-0000 (468108-0000, 468177-0000, 409282-0000, 3545839, 6N7239, 2W0719)(188402-0000, 188411-0000, 112098-0000)(1100120753) $94.00 NEW IN STOCK
Turbine Housing 406482-0003 (406482-0002, 406504-0104)(3S3993, 3S9793, 7S8870)(1100120822) $327.01
Compressor Cover406167-0104 (406504-0104, 406167-0004)(3S4478, 3S7126) $447.57
Gasket (turbine inlet)409038-0000 (210017-0000) $15.49
Gasket oil inlet210019 (409266-0004, 210019-0000, 201049, 129119, 409266-0003) $4.40
Gasket (oil outlet)210018 (3519763, 129120, 210018-0000, 201048, 157602, 3037537) $4.22
ManufacturerHoneywell-Garrett
ConditionRebuilt

Replaces 405490-0002, 405490-0005, 405490-0015

Applications

Caterpillar D7E Dozer with D330A, D330B Engine

Core Charge

There is a $400.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
