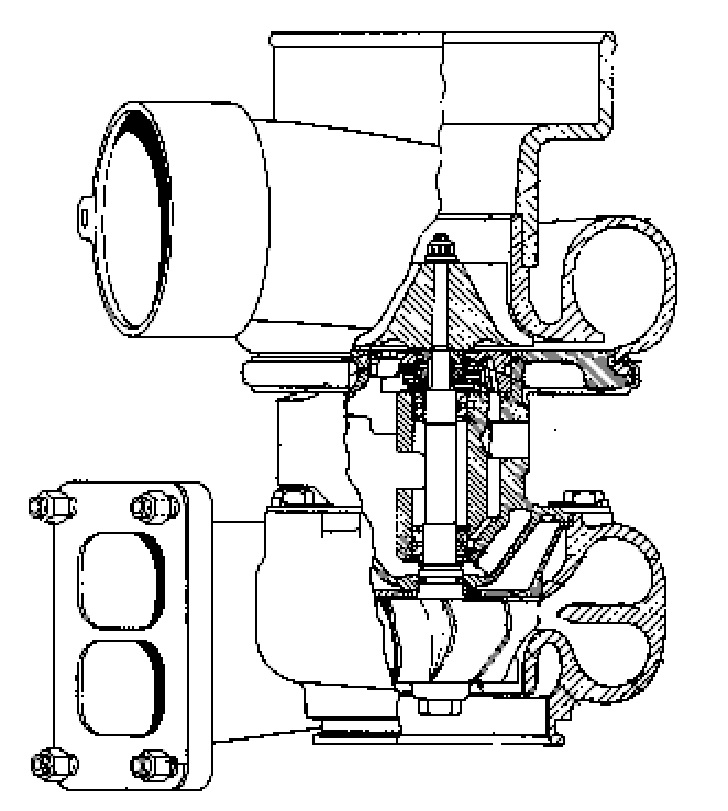

Caterpillar Earth Moving T1227 Turbo 408110-0006

Caterpillar Earth Moving T1227 Turbo 408110-0006
Item# turbo-earth-moving-cat-TC-4081100006
$1,993.60
Availability: Usually ships the next business day

Product Description


Part Number408110-5006S
Previous Version408110-0006, 408110-9006, 408110-0001 (9S2611), 408110-6
OE number1P-1163, 0R5850, 1P1163
DescriptionMarine, 583H-Pipelayer, D8H-Tractor, D8K-Tractor, D8-Tractor, 583K-Pipelayer, Earth Moving
CHRA407505-0016 (7N7251, 0R5915)(407505-0054, 407505-0055)(9S2610, 1P1162) $1,281.58 NEW IN STOCK
Turbo ModelT1227
EngineD342
Prefix61A, 78V, 36A,46A, 76V, 77V, 99Z, MGC
Displacement 20.4L, 20400 ccm, 6 Cylinders
KW 236
Track-Type TractorD8H
FuelDiesel
Serial No Serial No. 46A21397, 21403, 21404, 21407, 21412 to 21414, 21416, 21418, 21425 to 22347, 22350 to 22353, 22355, 22361, 22366, 22372 to 22379, 22384 to 22390, 22396 to 22402, 22407, 22408, 22409, 22635, 22639 to 22641, 22643, 22645, 22650, 22651, 22652, 22654, 22657 to 22659, 22661 to 22667, 22669 to 22681 and 46A22684-Up, 36A5203 to 36A5232, 36A5244 and 36A5251-Up, 46A24433 to 28403, 28407, 28410, 28413, and 46A28420 to 46A28424 inclusive
Angle α (compressor housing)30°
Angle β (turbine housing)320°
Bearing Housing406866-0004 (7N7252, 3S4480, 4S9702, 112023-0000)(1100120450) $386.26 NEW IN STOCK
Turbine Wheel406845-0005 (8S5167, OR5396)(112011-0000)(Ind. 88.4 mm, Exd. 77.7 mm, 11 Blades)(1100120436) $240.00 NEW IN STOCK
Comp. Wheel408126-0021 (1P1161)(Ind. 61.7 mm, Exd. 84.12 mm, 8+8 Blades, Billet) $164.90 NEW IN STOCK
Back plate 406834-0002 (3S4486, 4S6479, 8S5169)(406308-0000, 112045-0000)(1100120300) $97.97 NEW IN STOCK
Heat shield Number409368-0000 (3S4490, 9S9327, 7N3760)(407574-0002, 407778-0001, 112121-0000)(1100120340) $62.52 NEW IN STOCK
Repair Kit468109-0000 (2W0719, 3545839, 409282-0000, 468108-0000, 468177-0000, 188411-0000, 188402-0000, 112098-0000)(1100120753) $94.00 NEW IN STOCK
Turbine Housing406482-0024 (0R5432, 9S2608) $655.33
Compressor Cover407009-0082 (9S2609)
Turbine Housing AR 1.78
Gasket (turbine inlet)409038-0000 (210017-0000, 9749, 1S4295, 202873, 205396, 3500683, 132040)(1900000003) $17.21
Gasket oil inlet210019 (129119, 409266-0003, 3819900, 9737, 1S6595, 201049)(1900000035) $4.40
Gasket (oil outlet)210018 (129120, 201048, 409267-0002, 1S4810, 3709738, 3500682, 3519763, 9738, 9988, 210018-0000)(1900000025) $4.22
ManufacturerHoneywell-Garrett

Applications

Caterpillar Marine with D342 Engine

Caterpillar 583H-Pipelayer with D342 Engine

Caterpillar D8H, D8K-Tractor with D342 Engine

Caterpillar D8K-Tractor D342 with D342 Engine

Caterpillar 583K-Pipelayer with D342 Engine

Core Charge

There is a $500.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
