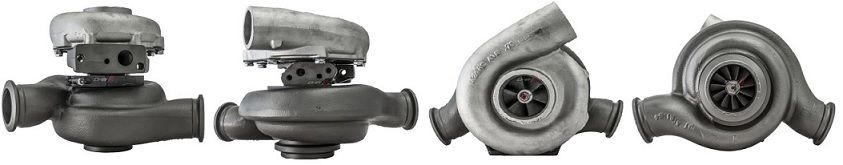

Caterpillar Earth Moving TM5401 Turbo 466010-0007

Caterpillar Earth Moving TM5401 Turbo 466010-0007
Item# turbo-earth-moving-cat-TC-4660100007
$2,240.80
Availability: Usually ships the next business day

Product Description


Part Number 466010-5007S
Previous Part Number466010-0007, 466010-0011, 466010-7
OE number7W-9132, 7W9132
Description Earth Moving
CHRA446481-0001 (446481-5001S)(7W2878, 0R5491)(1000010285) $783.26 NEW IN STOCK
Turbo Model TM5401
Fuel Diesel
Engine 3208 DIT GS
Generator Set Engine3208, SR4
GeneratorSR4
S/N30A5100-UP, 5YF1-1169, 5YF1493-UP, 30A05100-UP, 5YF00001-UP, 30A00210-05099
Bearing Housing443133-0001 (7W2880)(Oil Cooled)(1900011219) $261.79 NEW IN STOCK
Turbine Wheel441514-0001 (2W3141)(Ind. 82. mm, Exd. 71.6 mm, 11 Blades)(1100016046) $198.51 NEW IN STOCK
Comp. Wheel441063-0003 (441792-0004)(2W3142, 9Y1242)(Ind. 91. mm, Exd. 61.2 mm, 8+8 Blades, Superback)(1200016312) $106.99 NEW IN STOCK
Back plate447035-0001 (1051973)(1300016088) $194.03 NEW IN STOCK
Heat shield Number410366-0007 (7C7058)(410366-0004, 410366-0003)(2030016005) $17.58 NEW IN STOCK
Repair Kit468132-0000 (3545829)(468262-0002)(1100045754, 5000010045B) $96.00 NEW IN STOCK
Turbine Housing441035-0004 (7W9133) $558.20
Compressor Cover441298-0032 (2W3139) $436.01
Turbine Housing AR1.75
O-Rings (oil outlet)8M5127, 5P7530
Gasket (oil inlet)9N5307 $3.66
ManufacturerHoneywell-Garrett

Applications

Caterpillar Earth Moving With 3208 DIT GS Engine

Core Charge

There is a $500.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
