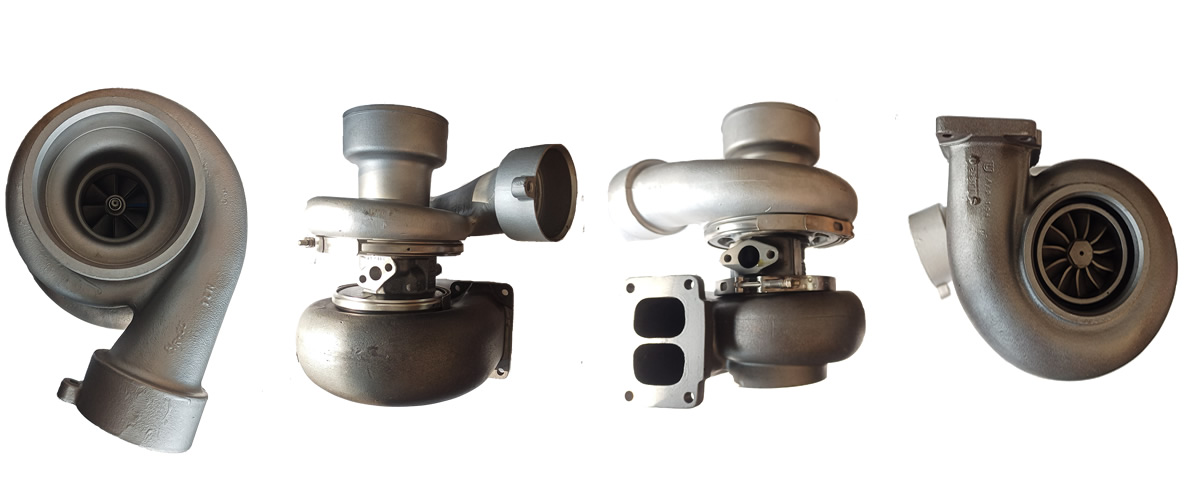

Caterpillar Industrial Engine, Earth Moving TV6135 Turbo 465984-0001

Caterpillar Industrial Engine, Earth Moving TV6135 Turbo 465984-0001
Item# turbo-earth-moving-cat-TC-4659840001
$1,456.25
Availability: Usually ships the next business day

Product Description


Part Number465984-5001S
Previous Part Number465984-9001, 465984-0001, 465984-1
OE number1W6862, 0R5800, 1W-6862
DescriptionEarth Moving, Industrial Engine Generator
CHRA409043-0050 (1W6865, 0R5869) $989.92
Turbo ModelTV6135, TV6135C
Engine3306, 3306 PCTAJWAC 101ININDUSTR
FuelDiesel
GeneratorSR4
Industrial EngineSR4; 3306; D333C
S/N66D49915-UP
Bearing Housing408495-0028 (9N2035) $265.12
Turbine Wheel408493-0007 (6N6611) $414.10
Comp. Wheel409318-0008/408495-0028 (9N2035) $265.12
Back plate408487-0016 (6N8630)
Heat shield Number407778-0001 (9S9327) $101.72
Repair Kit468103-0000 $97.20
Turbine Housing408142-0027 (6N6615) $662.12
Compressor Cover409603-0002
Turbine Housing AR1.54
Gasket (turbine inlet)409038-0001 (7M7273) $13.20
Gasket oil inlet210019 (129119) $8.40
Gasket (oil outlet)210018 (129120) $8.22
ManufacturerHoneywell-Garrett


Applications

Caterpillar Earth Moving 3306-Industrial PCTAJWAC 101



Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.



Warranty

This part comes with ONE YEAR unlimited mileage warranty.
