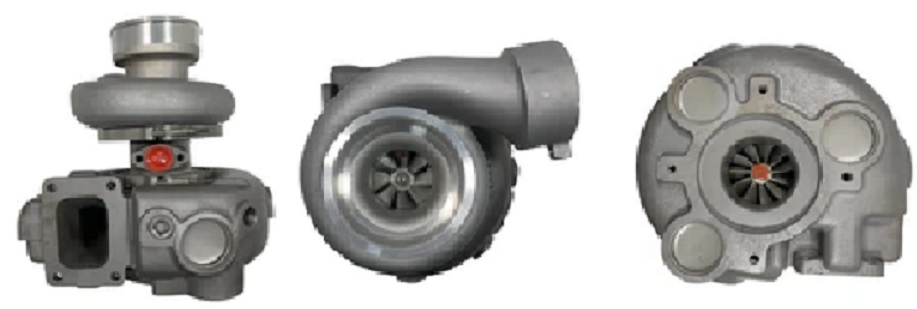

Caterpillar Earth Moving TW6141 Turbo 465586-0001

Caterpillar Earth Moving TW6141 Turbo 465586-0001
Item# turbo-earth-moving-cat-TC-4655860001
$2,885.00
Availability: Usually ships the next business day

Product Description


Part Number465586-5001S
Previous Version465586-0001
OE number8N5499, 8N-5499, 8N5497
DescriptionIndustrial Engine, Generator, Earth Moving
CHRA 409043-0041 (409043-5041S)(8N5497) $1272.26 NEW IN STOCK
Turbo Model TW6141
Engine 3306
Displacement 10500 ccm, 6 Cylinders
Fuel Diesel
Generator SR4
Industrial EngineSR4, 3306, D333C
S/N 66D49919-UP, 66D38355-UP, 66D49919-50010, 66D26832-49918
Bearing Housing 408495-0028 (9N2035)(408495-0009, 408495-0010)(Oil-Cooled)(1101672450) $116.83 NEW IN STOCK
Turbine Wheel408493-0006 (6N8486, AR73130, 4062619, 33164084936)(Ind. 79. mm, Exd. 86.04 mm, 11 Blades) $626.42 NEW IN STOCK
Comp. Wheel409033-0012 (8N0818)(Ind. 66.51 mm, Exd. 94.02 mm, Trm 53/57, 8+8/6+6 Blades, Billet) $279.30 NEW IN STOCK
Back plate408487-0021 (408487-0017)(8N0819, 331640848721, 408487-0017) $205.82 NEW IN STOCK
Heat shield Number 407657-0004 (409794-0000, 409794-0001, 9N2037, 9N3701, 8925757)(1101680340, 2030016145) $22.00 NEW IN STOCK
Repair Kit468103-0000 (312325, 468173-0000, 3545824, 2W0715)(1101280750, 5000010008) $97.20 NEW IN STOCK
Turbine Housing (Water cooled)409133-0141 (6N9906) $1650.97
Compressor Cover407009-0141 (8N0821) $490.35
Turbine Housing AR1.03
Gasket oil inlet129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)(1900000035) $4.38
Gasket (turbine inlet)409038-0001 (132040, 7M7273)132040 (9749, 1S4295, 202873, 205396, 3500683, 210017-0000, 409038-0000, 52231083002)(1900000003) $13.20
Gasket (oil outlet)210018 (129120, 210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025) $4.38
Manufacturer Honeywell-Garrett

Applications

Caterpillar Earth Moving with 3306 Engine

Core Charge

There is a $500.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
