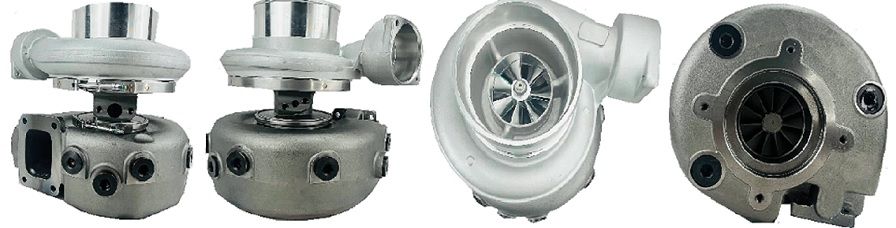

Caterpillar Industrial Gen Set, Marine TW8113 Turbo 465788-0002

Item# turbo-earth-moving-cat-TC-4657880002
$2,989.00
Availability: Usually ships the next business day

Product Description


Part Number465788-5002S
Previous Version465788-0002, 465788-9002, 465788-2
OE number1N4064, 1N-4064
DescriptionIndustrial Gen Set, Marine R.H.
CHRA408742-0006 (408742-5006S, 408742-0020, 408742-0029, 408742-0076, 408742-9006, 0R5867, 6N8654, 6N7960, 0R5910, 1W1653, 1W6809) $650.00 NEW IN STOCK, MADE IN USA
Turbo Model TW8113
Engine3508 DITA
Displacement 34500 ccm, 8V Cylinders
FuelDiesel
Generator Set Engine 3508, 3512, 3516, SR4
GeneratorSR4
Industrial EngineSR4
Bearing Housing408495-0028 (408495-0009, 408495-0010)(Oil Cooled)(0R5404, 160025, 9N2035)(1101672450) $106.83 NEW IN STOCK
Turbine Wheel408492-0021 (408492-0014, 408492-0017, 408492-0028)(9N2043)(Ind. 111.4 mm, Exd. 97.1 mm, Trm 15.97, 11 Blades)(1101081435, 1100020188) $290.30 NEW IN STOCK
Comp. Wheel409132-0001 (409132-0007, 444827-0001, 444827-0016)(6N7961, 7C9622, 4P3429, 33164091321)(Ind. 76. mm, Exd. 108. mm, Trm 8.15, 6+6 Blades, Superback)(1101881401, 1200016130) $108.00 NEW IN STOCK
Back plate408487-0013 (6N7962, 331640848713)(1101680360, 1300016142) $145.20 NEW IN STOCK
Heat shield Number407657-0004 (409794-0000)(9N2037, 9N3701, 8925757)(1101680340, 2030016145) $22.00 NEW IN STOCK
Repair Kit468211-0000 (3545836, 188002-0000, 3545824)(7A0636, 23513074, 3316468211)(5000010008) $97.20 NEW IN STOCK
Turbine Housing Water-Cooled
Turbine Housing AR1.03
Gasket (turbine Inlet) 132040 (202873, 205396, 205396, 3500683, 210017-0000, 409038-0000, 1S4295, 9749)(1900000003) $14.21
Gasket oil inlet210019 (201049, 129119, 409266-0003, 3819900, 9737, 1S6595)(1900000035) $4.38
Gasket (oil outlet)129120 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763) (1900000025) $4.38 $8.22
ManufacturerHoneywell-Garrett

Applications

Caterpillar Industrial Engine, Gen Set Marine with 3508, 3512, 3516 Engine

Core Charge

There is a $500.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
