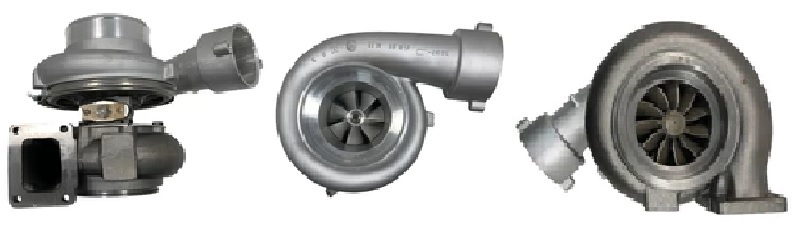

Caterpillar Industrial, Marine Engine TW9211 Turbo 466612-0006

Caterpillar Industrial, Marine Engine TW9211 Turbo 466612-0006
Item# turbo-Industrial-cat-TC-4666120006
$2,866.23
Availability: Usually ships the next business day

Product Description


Part Number466612-5006S
Previous Part Number466612-0003, 466612-0006, 466612-9006, 466612-0005, 466612-0004, 466612-6
OE number0R7159, 102-0291, 1020291, 7C0780
DescriptionEngines and Power Units Industrial, Marine Engine
CHRA410349-0008 (410349-5008S, 410349-0026, 410349-0034, 700147-0003)(0R6327, 0R6801, 0R7165, 100-4095, 1004095, 7W3570)(1000010448) $1212.20 NEW IN STOCK
Turbo Model TW9211
Displacement51.80L, 51800 ccm, V12 Cylinders
FuelDiesel
Engine3512 DITAJWAC GS
Generator Set Engine3512
Marine Engine3512
Industrial EngineG3516, 3512
S/N4EK87-UP, 49Y486-925, 50Y647-1304, 49Y00926-UP, 50Y01305-UP, 24Z04366-UP, 4EK00001-UP, 49Y00486-00925, 50Y00647-01304, 24Z01317-UP
Bearing Housing410301-0001 (410301-0002, 443245-0001)(4W1224, 23504279)(Oil Cooled)(1101092450) $463.52 NEW IN STOCK
Turbine Wheel442208-0001 (4W1223)(Ind. 106.8 mm, Exd. 129. mm, 11 Blades)(1101094435, 1100016382) $437.69 NEW IN STOCK
Comp. Wheel441813-0002 (445035-0004, 441813-0008)(9Y1493, 6I2104, 7W2298)(Ind. 141.2 mm, Exd. 93.7 mm, 7+7 Blades)(1200016530) $162.61 NEW IN STOCK
Back plate408487-0032 (408487-0042)(7W2300, 1093481, 4W4609) $294.92 NEW IN STOCK
Heat shield Number410370-0005 (1900388, 4W1329) $84.05 NEW IN STOCK
Repair Kit 707899-0001 (1101090750) $92.40 NEW IN STOCK
Turbine Housing (Water Cooled)448406-0004 (7C0880) $1634.45
Compressor Cover443892-0009 (7W2299) $918.10
Turbine Housing AR1.70
Plug-Cup3B0645 $3.87
Plug-Cup
Plug-Cup4N0932 $5.96
Plug-Cup3P1896 $4.89
Plug-Cup1006816 $5.43
Gasket (turbine inlet)409038-0001 (409038-0000, 1S4295, 132040, 205396, 202873, 3500683, 1215736, 210017-0000, 210835-0000, 9749)(1900000003) $15.49
Gasket oil inlet210019 (409266-0004, 210019-0000, 201049, 129119, 409267-0002, 409266-0003)(Paper)(1900000035) $4.40
Gasket (oil outlet)210018 (129120, 210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025) $4.38
Gasket (turbine outlet)210255 (4W2359)(Copper) $11.43
Listed new$6,569.49
ManufacturerHoneywell-Garrett

Applications

Caterpillar Industrial, Marine Engine 3512

Core Charge

There is a $800.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
