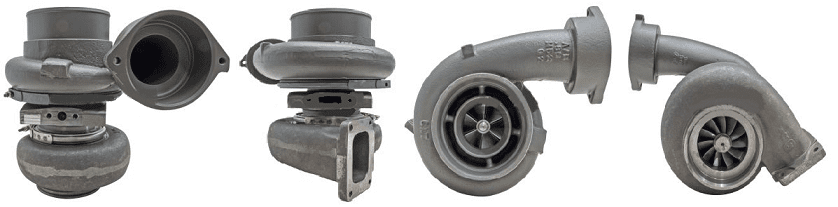

Caterpillar Industrial Engine BTL7510 Turbo 709102-0003

Caterpillar Industrial Engine BTL7510 Turbo 709102-0003
Item# turbo-industrial-caterpillar-TC-7091020003
$3,557.49
Availability: Usually ships the next business day

Product Description


Part Number709102-5003S
Previous Version709102-0003, 709102-9003, 7091020003, 7091025003, 7091029003, 709102-3
OE Number10R1700, 10R0432, 2301060, 230-1060, 204-5476, 2045476
DescriptionMachine Engine , Industrial Engine
CHRA710270-0033 (710270-33, 449109-0009, 449109-0015, 449109-0030)(1364410, 1486865, 0R7042, 1747086, 0R9768, 2045480, 10R0433, 3016868) $1,886.09 NEW IN STOCK
Turbo ModelBTL7510
Engine Model3508, 3516
Prefix5XS, B8L, B8R, BTB, XSM, XSS, KDK, 4HK, 74Z, 442, 7PZ, 9TR, 9XR, AAF, DDD, RAL, 99Z, MGC
Engine ManufacturerCaterpillar
FuelDiesel
Machine Engine3508B, 3516B
Track-Type TractorD11N, D11R
Wheel-Type Loader994F
S/N2GR4243-4243, 2GR4316-4316, 2GR4323-4323, 2GR4367-4367, 2GR4388-4388, 2GR4420-UP, 2GR7138-8267, 2GR4420-6443, 2GR7138-8267, 8WM1-2293, 2GR4427-UP
Bearing Housing708605-0001 (449159-0001)(Water Cooled) $406.37 NEW IN STOCK
Turbine Wheel448953-0003 (Ind. 99.1 mm, Exd. 87.9 mm, 11 Blades) $590.10 NEW IN STOCK
Comp. Wheel448671-0019 (Ind. 74.7 mm, Exd. 102.3 mm, Trm 53, 6+6 Blades, Boreless) $189.65 NEW IN STOCK
Back plate710269-0003 (448797-0009)(carbon seal) $138.44 NEW IN STOCK
Repair Kit468267-0007 (468267-0006) $95.33 NEW IN STOCK
Turbine Housing AR1.08
Gasket oil inlet210161 (Paper) $4.80
Gasket (oil outlet)210172 (Paper) $4.80
Gasket (water inlet and outlet)210021 (409037-0000, 210021-0000, 311496, 413671-0000, 3519807, 210021)(1900000027) $4.80
Listed$5026.14
NOTEPartially restricted
ManufacturerHoneywell-Garrett

Applications

Caterpillar Industrial Engines with 3508B, 3516B Engine

Core Charge

There is a $800.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
