Home > Force Inductions > TURBO CHARGERS > INDUSTRIAL > CATERPILLAR > Caterpillar Industrial Engine GT6041BL Turbo 701252-0033

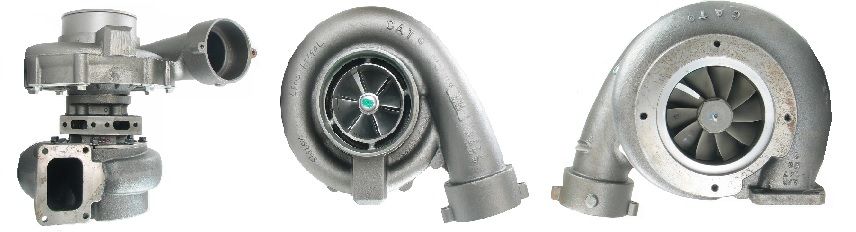

Caterpillar Industrial Engine GT6041BL Turbo 701252-0033

Caterpillar Industrial Engine GT6041BL Turbo 701252-0033
Item# turbo-industrial-caterpillar-TC-7012520033
$7,659.54
Availability: Usually ships the next business day

Product Description


Part Number701252-5033S
Previous versions701252-0033, 701252-0034, 701252-0037, 701252-9033, 701252-33
OE number1886295, 188-6295, 289-1450, 2891450, 453-7765, 4537765, 289-8785, 306-9393, 30R0459
DescriptionIndustrial Engine, Generator Set Engine, Power Module
CHRA452705-0022 (452705-5022S, 452705-0045)(154-1620, 1771002, 180-3943, 1803943, 10R2340, 10R-8932, 919-3943, 509-1014) $2746.68
Turbo ModelGT6041BL, GT6041BLN
Engine G3516B
FuelDiesel
NSN5925-01-188-6295, 5925011886295
Generator Set EngineG3516B, G3516B, PMG3516
GeneratorSR4B
Marine Products3516, 3516B
Industrial Engine3512, 3512B, 3516B, G3516B, 3516
Off-Highway Truck797
Petroleum Products3516C
S/N L6S1-UP, CTW1-UP, ZBC196-UP, CTW565-UP, CEY165-UP, ZBC1-195, CTW1-UP, CTW1-564, CEY1-164, CEY00001-UP, CFD00001-UP, CME00001-UP, ZBC00001-UP, KAD00001-UP, L6J00001-UP
Fuel Diesel
Bearing Housing 451488-0001 (706666-0026)(Water Cooled) $1,745.46
Turbine Wheel452700-0001 (10 Blades, Boreless) $2,159.69 NEW IN STOCK
Comp. Wheel712853-0001 (6+6 Blades, Boreless) $1,033.41 NEW IN STOCK
Back plate 452903-0001 (452903-0002) $394.65 NEW IN STOCK
Heat shield NumberN/A
Repair Kit705731-0001 (705731-0005) $189.00 NEW IN STOCK
Turbine Housing701870-0002 (811527-0006, 701870-0013, 701872-0123, 701872-0125)(1933352, 2942945) $2688.39
Compressor Cover451784-0061 (451784-0065, 451784-0100)(1768295) $1426.61
Turbine Housing AR1.47/1.70/2.0
Gasket (turbine inlet)2894079 (289-4079) $65.12
NOTEBoreless
ManufacturerHoneywell-Garrett

Applications

Caterpillar Industrial Generator Set Engine with G3516B Engine

Core Charge

There is a $1000.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
