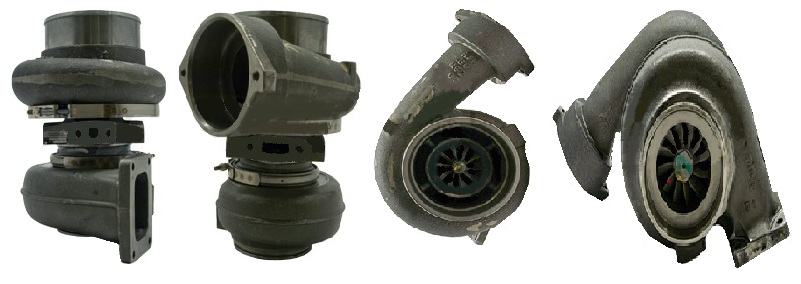

Caterpillar Industrial, Machine Engine, Truck GTB4708BLN Turbo 740464-0020

Caterpillar Industrial, Machine Engine, Truck GTB4708BLN Turbo 740464-0020
Item# turbo-truck-caterpillar-TC-7404640020
$3,215.81
Availability: Usually ships the next business day

Product Description


Part Number740464-5020S
Previous Part Number740464-0009, 740464-0018, 740464-0020, 740464-5020, 740464-20
OE Number10R-2844, 10R2844, 20R-6651, 20R6651, 254-4243, 2544243 296-3614, 2963614, 301-6871, 3016871
DescriptionCaterpillar Machine Engine, Excavator, Off-Highway Truck
CHRA757360-0022 (757360-5022S, 757360-0003, 757360-0011, 10R8225, 258-6588, 2586588, 296-8405, 2968405, 301-6868, 3016868) $2648.00 NEW IN STOCK
Turbo ModelGTB4708BLN
Engine Manufacturer Caterpillar
FuelDiesel
Machine Engine3508B, 3516, 3516B
Wheel-Type Loader992G, 994F
Off-Highway Truck776D, 777B, 777C, 777D, 789C
S/N7TR1-UP, 8NZ1-UP, 2GR7638-UP, JDM1-363, C8T364-UP, 2GR8016-UP, 2GR6329-UP, C8T1-UP, 2GR6444-UP, C8T100-UP, 2GR6444-UP, C8T122-UP, 2GR6329-UP, C8T152-UP, 7TR1-UP, 2GR7868-UP, C8T139-UP, 7TR2561-UP, 7EK00001-UP, 5ER00001-UP, 3PR00001-UP, 2BW00001-UP, ADZ00001-UP, AFS00001-UP, AGC00001-UP, AMP00001-UP, 44200001-UP, A4W00001-UP, AZX00001-UP, 4XJ00001-UP, FKR00001-UP, SPD00001-UP, 4YC00001-UP, DWC00001-UP, 9ZC00001-UP
Angle α (compressor housing)339.5º
Angle β (turbine housing)112º
Bearing Housing756692-0012 (Water Cooled) $495.31 NEW IN STOCK
Turbine Wheel745193-0003 (Ind. 85.4 mm, Exd. 92.81 mm, 12 Blades) NEW IN STOCK
Comp. Wheel735666-0020 (Ind. 76.35 mm, Exd. 107.97 mm, 10+10 Blades) NEW IN STOCK
Back plate710269-0005 $195.08 NEW IN STOCK
Repair Kit709153-0002 (709153-0001, 709153-0005)(1102042750) $90.80 NEW IN STOCK
Turbine Housing441122-0122 (1262757, 2586589) $848.99
Compressor Cover442892-0038 (2586590) $871.65
Gasket (turbine inlet)1215736 $13.52
NOTEPartially restricted
Listed$4115.81
Replaced By710024-5006S
ManufacturerHoneywell-Garrett

Applications

Caterpillar Industrial, Machine Engine, Truck 3508B, 3516, 3516B

Core Charge

There is a $1000.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

This part comes with ONE YEAR unlimited mileage warranty.
