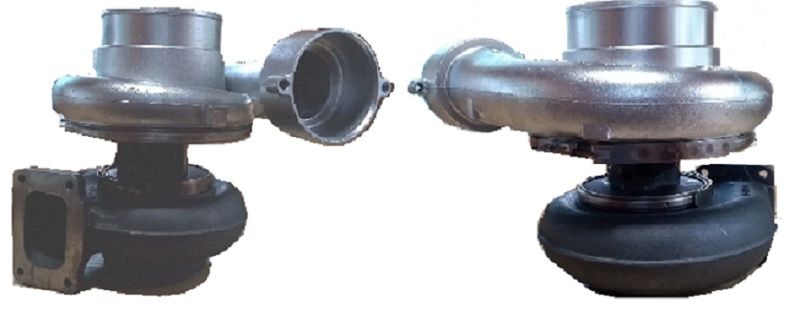

Caterpillar Industrial UTV8302 Turbo 466837-0005

Item# turbo-industrial-caterpillar-TC-4668370005
$2,980.00
Availability: Usually ships the next business day

Product Description


Part Number466837-5005S
Previous Version4668370005, 466837-0005, 466837-5
OE Number 154-1608, 1541608
Description Industrial Engines, Power Units
CHRA449530-0005 (449530-5005S, 1182988, 0R6733) $980.00 NEW IN STOCK
Turbo Model UTV8302
Engine Manufacturer Caterpillar
Engine3516, 3512A Low Speed Industrial
Displacement 16V, 69000 ccm
Fuel Diesel
Angle α (compressor housing)312º
Angle β (turbine housing) 292º
Bearing Housing449072-0001 (Oil Cooled) $258.41 NEW IN STOCK
Turbine Wheel449587-0001 (451940-0001)(Ind. 102. mm, Exd. 112.04 mm, Trm 47, 10 Blades) $494.91 NEW IN STOCK
Comp. Wheel443121-0003 (451948-0021, 449587-0001)(6I0849)(Ind. 85.53 mm, Exd. 117.65 mm, Trm 8, 6+6 Blades) $190.24 NEW IN STOCK
Back plate442732-0005 $194.39 NEW IN STOCK
Heat Plate 407657-0009 (409794-0002)(1N3751, 9Y1936) $76.06 NEW IN STOCK
Repair Kit468267-0010 (1101085750) $88.40 NEW IN STOCK
Turbine Housing441122-0106 (1196008, 119-6008) $813.98
Compressor Cover443892-0015 (6I0850) $574.64
Turbine Housing AR1.60
Gasket (turbine inlet)409038-0001 (132040, 7M7273)132040 (9749, 1S4295, 202873, 205396, 3500683, 210017-0000, 409038-0000, 52231083002)(1900000003) $13.20
Gasket oil inlet129119 (210019, 201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 129120)(417378 Replaced by 420641)(1900000035) $4.38
Gasket (oil outlet)210018 (129120, 210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025) $4.38
ManufacturerHoneywell-Garrett
ConditionRebuilt

Applications

Caterpillar Industrial Turbo With 3516, 3512A Low Speed Industrial Engine

Core Charge

There is a $500.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
