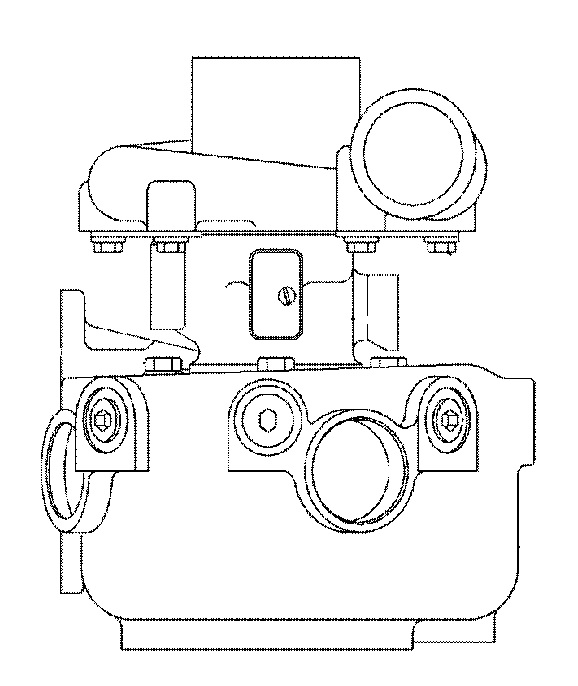

For Phone order call 818-506-8005 1-877-42TURBO(TOLL Free)Caterpillar Marine S330W070 Turbo 171361
Product Description
| Part Number | 171361 |
| Previous Version | 171361R |
| OE number | 185-2289, 185-2325, 1852289, 1852325, 20R2981, 471361 |
| Description | Marine |
| CHRA | 171366 (0R9955, 178182, 185-6775, 1856775, 478182) $1097.52 NEW IN STOCK |
| Turbo Model | S330W070 |
| Engine | 3126 MUI |
| KW | 420 HP |
| Fuel | Diesel |
| Prefix | 1ZJ, 6MK |
| Marine Engine | 3126 |
| NSN | 2920-01-412-9594 |
| S/N | 1ZJ00001-UP, 6MK00001-UP, 1ZJ333-UP |
| Bearing Housing | 170247 (Oil Cooled) $299.92 NEW IN STOCK |
| Turbine Wheel | 170246 (Ind. 64.63 mm, Exd. 77.56 mm, 10 Blades) $508.02 NEW IN STOCK |
| Comp. Wheel | 169578 (Ind. 60.50 mm, Exd. 79.76 mm, 7+7 Blades, Superback) $217.65 NEW IN STOCK |
| Back plate | 167543 (3762564, 62564)(1253300300) $40.48 NEW IN STOCK |
| Heat shield Number | 167550 (317590, 3519302)(1649415) $14.64 NEW IN STOCK |
| Repair Kit | 318382 (176392, 318389, 315565, 166138)(1253200750) $97.52 NEW IN STOCK |
| Turbine Housing (Water Cooled) | 169843 (1527458) $908.68 |
| Compressor Cover | 1787266 $525.336 |
| Gasket (turbine inlet) | 4P7704 $13.44 |
| Manufacturer | Borg Warner - 3K - Schwitzer, BWTS USA |
Caterpillar Marine with 3126 MUI Engine There is a $500.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received. This part comes with ONE YEAR unlimited mileage warranty.Applications
Core Charge
Warranty
