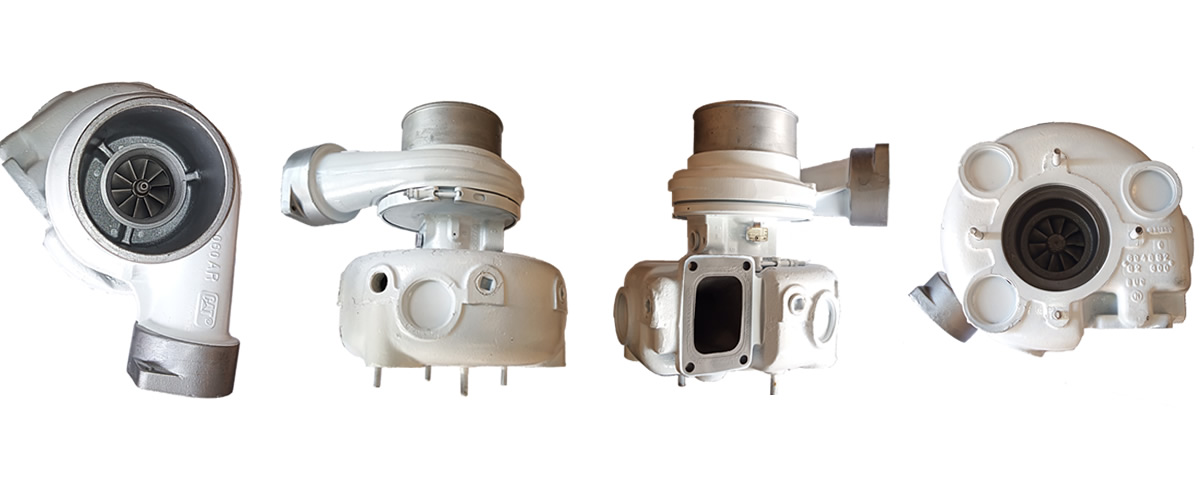

2003- Caterpillar Marine S410W068 Turbo 172300

2003- Caterpillar Marine S410W068 Turbo 172300
Item# turbo-marine-cat-TC-172300
$3,798.98
Availability: Usually ships the next business day

Product Description


Part Number 172300
Previous Part Number 172299, 14839880018, 1483 988 0018
OE number201-7275, 201-4824, 2017275, 2014824, 10R4115
Description Marine
CHRA172301 (172301R, 178391, 178391R, 472301, 478391)(2041530, 204-1530, 30R0211, 30R-0211) $1,217.13 NEW IN STOCK
Turbo ModelS410W068
EngineC18
PrefixCKH, CYN, GBM, GEN, GES, J2K, JHL, JKX, KJT, MPE, NAY, P2N, PLE, T2P, DDS, DES, MGS
FuelDiesel
Generator Set EngineC18
GeneratorSR4
Marine EngineC18
S/N GPS1-UP, GPT1-UP, CYG1-UP, GPN1-UP, CKH00001-UP, CYN00001-UP, NAY00001-UP, MGS00001-UP, GES00001-UP, J2K00001-UP, JKX00001-UP, JHL00001-UP, GBM00001-UP, DDS00001-UP
Bearing Housing(Oil Cooled)
Turbine Wheel(Ind. 74.29 mm, Exd. 83.40 mm, 10 Blades)
Comp. Wheel3536155 (Ind. 67.60 mm, Exd. 96.00 mm, 5+5 Blades, Superback)(1152105435) $322.64 NEW IN STOCK
Back plateNEW IN STOCK
Heat shield Number167789 NEW IN STOCK
Repair Kit 318396 (318397, 169637)(1253400750) $139.00 NEW IN STOCK
Turbine Housing (Water Cooled)204-1531 (2041531) $1171.35
Compressor housing2041256 (204-1256) $717.28
Gasket (turbine inlet)409038-0001 (210835-0000, 9749, 7M7273) $13.20
Plug-Cup0L1024 $5.49
Plug-Pipe9L8412 $7.51
ManufacturerBorg Warner - 3K - Schwitzer, BWTS USA

Applications

Caterpillar Marine with C18 Engine

Core Charge

There is a $800.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
