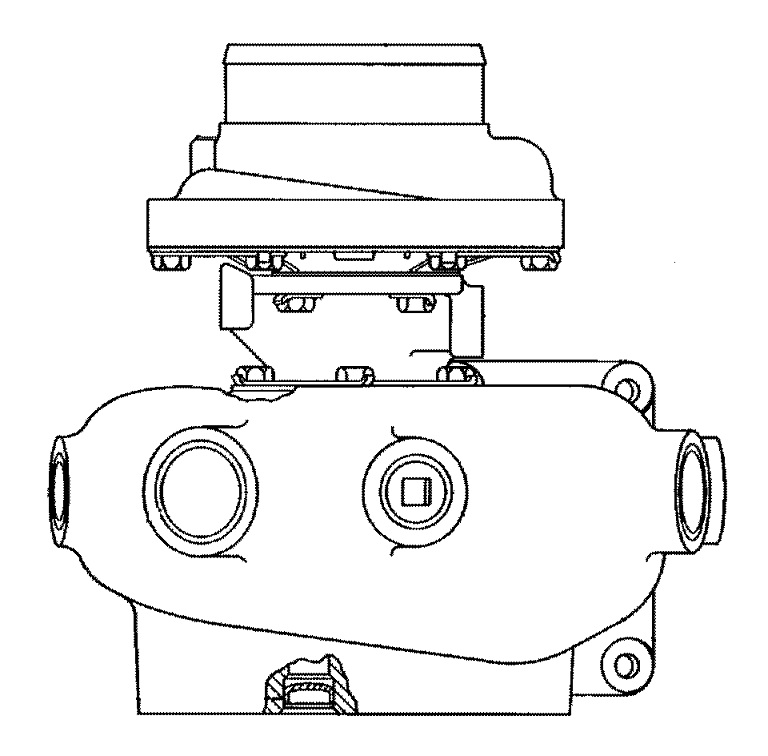

Caterpillar Marine TW4C01 Turbo 466108-0002

Caterpillar Marine TW4C01 Turbo 466108-0002
Item# turbo-marine-cat-TC-4661080002
$3,811.10
Availability: Usually ships the next business day

Product Description


Part Number466108-5002S
Previous versions466108-0002, 466108-2, 466108-9002
OE number 7C1148, 1103866, 110-3866, 7C-1148
Description Marine, Industrial Engine
CHRA408077-0106 (408077-5106S)(4W2277, 0R6094) $842.22 NEW IN STOCK
Turbo ModelTW4C01
Engine3306 DIT
Equip466076
Marine Engine3306B, 3406B
Displacement10.5L, 10500 ccm, 6 Cylinders
FuelDiesel
Generator Set Engine3306
GeneratorSR4
Industrial EngineSR4
Marine Engine3306B
S/N 1RS1-UP, 85Z11512-UP, 85Z03764-UP, 1RS00001-UP
KW150
FuelDiesel
Bearing Housing 430027-0051 (2P9635)(186880, 186882, 407285-0018, 407285-0055, 430027-0031, 430027-0035)(Oil Cooled)(1900011188) $78.82 NEW IN STOCK
Turbine Wheel410188-0026 (1555236)(446905-0002, 410188-0003, 446905-0005, 446905-0007, 446905-0010, 451309-0003, 407276-0006, 407276-0019, 410188-0006, 410188-0037, 451309-0004)(Ind. 73.99 mm, Exd. 64.61 mm, Trm 10.79, 11 Blades) $189.00 NEW IN STOCK
Comp. Wheel409063-0007 (4W2280) $197.44 NEW IN STOCK
Back plate408045-0044 (4W2278, 7C9042) $148.00 NEW IN STOCK
Heat shield Number 409299-0001 (409299-0000)(7N0012) $15.70 NEW IN STOCK
Repair Kit468100-0000 (310063, 3524796, 188006-0000, 2W0716)(1100040750, 5000010041) $61.60 NEW IN STOCK
Turbine Housing (Water Cooled)409344-0022 (8N5496) $1787.33
Compressor Cover409722-0010 (4W2279) $281.41
Gasket oil inlet210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper) $4.48
Gasket (oil outlet)210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) $3.32
Plug-pipe(1B5174, 4N0932) $6.71
Plug Cup (20.64 MM OD)1006815 $40.18
Plug Cup (19.05 MM OD)1006814 $17.95
Plug Cup (41.28 MM OD)5S0385 $16.23
Plug Cup (38.10 MM OD)2M6471 $15.81
Flared Elbow9L4007 $22.38
Flared Elbow6V1760 $36.13
Plug5M6213 $3.93
ManufacturerHoneywell-Garrett

Applications

Caterpillar Marine with 3306 DIT Engine

Core Charge

There is a $400.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
