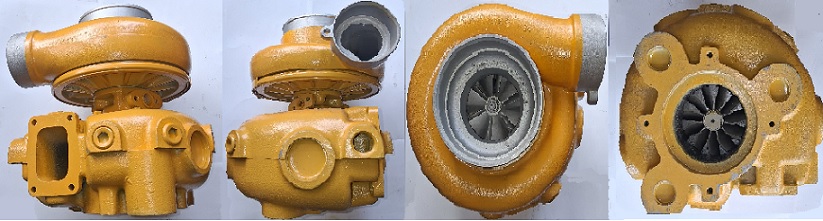

Caterpillar Marine TW4C01 Turbo 466108-0003

Caterpillar Marine TW4C01 Turbo 466108-0003
Item# turbo-marine-cat-TC-466108-0003
$3,386.51
Availability: Usually ships the next business day

Product Description


Part Number 466108-5003S
Previous Part Number466108-0003, 466108-9003, 466108-0001, 466108-3
OE number 4W2276, 4W-2276, 20R3162, 20R-3162, 7C4763, 7C-4763
Description Marine, Earth Moving, Gen Set
CHRA408077-0106 (408077-5106S)(4W2277, 0R6094) $842.22 NEW IN STOCK
Turbo Model TW4C01
Engine3406, 3406-Genset DITAJWAC GS
Displacement10.5L, 10500 ccm, 6 Cylinders
KW110
FuelDiesel
Generator Set Engine3306, 3406B, SR4
GeneratorSR4
Industrial EngineSR4
Marine Engine3306B, 3406B
S/N85Z1-3763, 85Z00001-03763, 85Z3764-11511, 4KC00001-UP, 2JF00001-UP, 85Z03764-UP, 9TG00001-UP, 5JD00001-UP, 4WD00001-UP, 1RS00001-UP, 4TB03482-UP, 2WB11476-UP, CPJ00001-UP, WPM00001-UP, E8C00001-UP
Bearing Housing 430027-0051 (2P9635)(186880, 186882, 407285-0018, 407285-0055, 430027-0031, 430027-0035)(Oil Cooled)(1900011188) $78.82 NEW IN STOCK
Turbine Wheel410188-0026 (1555236)(446905-0002, 410188-0003, 446905-0005, 446905-0007, 446905-0010, 451309-0003, 407276-0006, 407276-0019, 410188-0006, 410188-0037, 451309-0004)(Ind. 73.99 mm, Exd. 64.61 mm, Trm 10.79, 11 Blades) $189.00 NEW IN STOCK
Comp. Wheel409063-0007 (4W2280) $197.44 NEW IN STOCK
Back plate408045-0044 (4W2278, 7C9042) $148.00 NEW IN STOCK
Heat shield Number 409299-0001 (409299-0000)(7N0012) $15.70 NEW IN STOCK
Repair Kit468100-0000 (310063, 3524796, 188006-0000, 2W0716)(1100040750, 5000010041) $61.60 NEW IN STOCK
Turbine Housing (Water Cooled)409344-0023 (4W2308) $1,902.29 NEW IN STOCK
Compressor Cover409722-0010 (4W2279) $283.21 NEW IN STOCK
Turbine Housing AR 1.32
Gasket oil inlet210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper) $4.48
Gasket (oil outlet)210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) $3.32
Plug-Pipe(1B5174, 4N0932) $6.71
Plug Cup 3B0622 (8F6575, 8F6575) $8.62
Plug Cup (38.10 MM OD)2M6471 $15.81
ManufacturerHoneywell-Garrett

Applications

Caterpillar Marine with 3406 Engine

Core Charge

There is a $400.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
