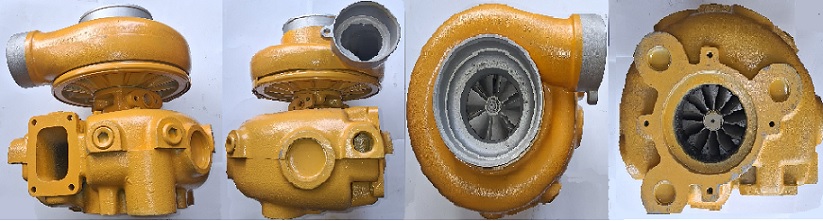

Caterpillar Marine TW9101 Turbo 466050-0003

Caterpillar Marine TW9101 Turbo 466050-0003
Item# turbo-marine-cat-TC-4660500003
$3,900.00
Availability: Usually ships the next business day

Product Description


Part Number 466050-5003S
Previous Version 466050-0003, 466050-3, 466050-0001, 466050-0002, 466050-0004, 466050-0006
OE number 10R8250, 2W0285, 2W0286, 4W1232, 4W1233, 7C2731
Description 3512-Marine LH 3512 DITAJWAC 712 FPSTANDBY
CHRA410349-0004 (410349-9004, 410349-0001)(1N3088, 4W1225, 0R5363) $1,712.20 (NEW $3883.89)
Turbo Model TW9101
Engine 3512 LH, 3512 DITAJWAC 712 Fp - Standby
Displacement51800 ccm, V12 Cylinders
Generator Set Engine3412, 3412C, 3512, 3516, SR4
Generator SR4
Industrial EngineSR4, 3512, 3516
Marine Engine3412C, 3412, 3412C, 3412E, 3512, 3516
Serial NO.60M2573-2654, 50Y544-UP, 49Y355-UP, 72Z319-UP, 50Y647-647, 72Z339-342, 49Y486-925, 9BR558-UP
FuelDiesel
Bearing Housing410301-0002 (410301-0001)(4W1224, 23504279)(Oil Cooled)(1101092450) $463.52 NEW IN STOCK
Turbine Wheel442208-0001 (23503611, 4W1223)(Ind. 106.8 mm, Exd. 129. mm, Trm 19.35, 11 Blades)(1101094435, 1100016382) $637.69 NEW IN STOCK
Comp. Wheel409257-0001 (1N3562)316483)(Ind. 91.11 mm, Exd. 127.01 mm, Trm 9.62, 6+6 Blades, Superback) $291.48 NEW IN STOCK
Back plate408487-0012 (1N3383)(409629-0007) $276.45 NEW IN STOCK
Heat shield Number410370-0003 (410370-0005)(190-0388, 4W1329) $229.99 NEW IN STOCK
Repair Kit468416-0000 (707899-0001)(1101090750, 1101090755) $92.40 NEW IN STOCK
Turbine Housing (Water Cooled)448406-0002 (1W7770) $2,794.14 NEW IN STOCK
Compressor Cover408865-0010 (1N3087)
Turbine Housing AR1.25
Gasket (turbine inlet)409038-0001 (409038-0000, 1S4295, 132040, 205396, 202873, 3500683, 1215736, 210017-0000, 210835-0000, 9749)(1900000003) $15.49
Gasket (turbine Outlet)210255
Gasket oil inlet210255 (Copper)
Gasket oil inlet129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)(1900000035)(Paper) $4.48
Gasket (oil outlet)129120 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025) $4.38
Replaced By466050-0001
ManufacturerHoneywell-Garrett

Applications

Caterpillar Marine with 3512 LH Engine

Core Charge

There is a $1000.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
