Home > Force Inductions > TURBO CHARGERS > TRUCK > CATERPILLAR > Caterpillar Mining ,Off-Highway Truck GT604102BL Turbo 709265-0005

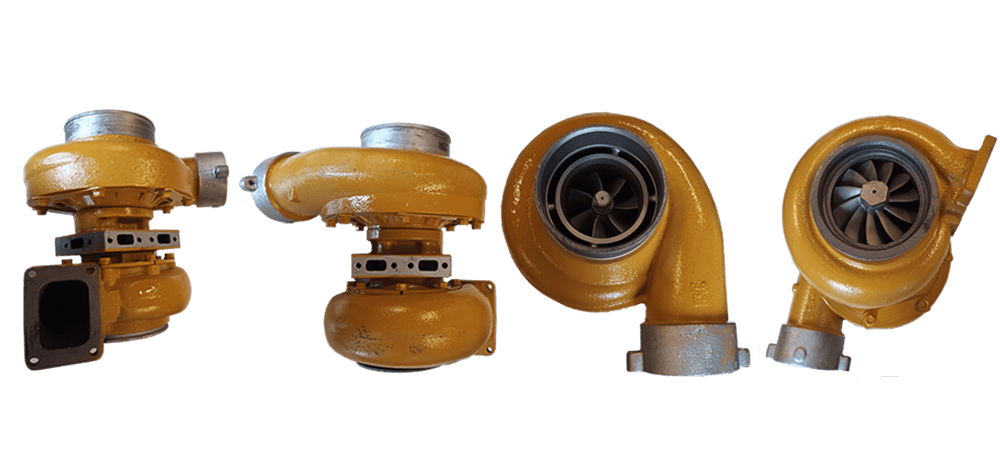

Caterpillar Mining ,Off-Highway Truck GT604102BL Turbo 709265-0005

Caterpillar Mining ,Off-Highway Truck GT604102BL Turbo 709265-0005
Item# turbo-truck-cat-TC-7092650005
$6,500.00
Availability: Usually ships the next business day

Product Description


Part Number 709265-5005S
Previous Part Number709265-9005S, 709265-0005, 709265-5, 709265-0001, 709265-0002, 709265-0004, 709265-0006
OE number0R-7312, 0R-7430, 0R7312, 0R7430, 169-2566, 1692566, 174-7090, 1747090, 175-5208, 1755208, 180-5435, 1805435, 305-2681, 3052681, 20R-1977
DescriptionMachines Engine, Mining, Off-Highway Truck
CHRA452705-0031 (452705-5031S, 452705-0001, 452705-0027, 1400394, 1805433, 0R7189, 2877208, 919-2437) $5945.89
Turbo ModelGT6041BL, GT604102BL
Engine3512
Engine ModelCAT 785C
FuelDiesel
Machines Engine3512, 3512B
Off-Highway Truck 785C, 784C, 785C, 777D, 785B, 777DHAA
S/NS/N 8BR1-UP, 8BR614-UP, 6HK00001-UP, 1HW00001-UP, 2PZ00001-UP, AGY00001-UP, APX00001-UP
Bearing Housing451488-0001 (Water Cooled) $1291.74 NEW IN STOCK
Turbine Wheel451447-0001 (Ind. 113. mm, Exd. 130. mm, Trm 21.6, 11 Blades) $1,377.57 NEW IN STOCK
Comp. Wheel452702-0009 (452702-0001)(Ind. 97.8 mm, Exd. 141.28 mm, 6+6 Blades) $281.35 NEW IN STOCK
Back plate452703-0001 $140.62 NEW IN STOCK
Repair Kit705731-0001 $184.10 NEW IN STOCK
Turbine Housing441319-0092 (1692570) $1495.52
Compressor Cover451839-0005 (1783655) $1221.58
Gasket (turbine inlet)409038-0001 (1215736, 7M7273) $13.20
NOTEPartially restricted, Mining truck CAT 785C
ManufacturerHoneywell-Garrett

Applications

Caterpillar Mining, Off-Highway Truck With 3512, 3512B Engine

Core Charge

There is a $1400.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
