Home > Force Inductions > TURBO CHARGERS > VARIOUS > CATERPILLAR > Caterpillar Various BTV5501 Turbo 466423-0005

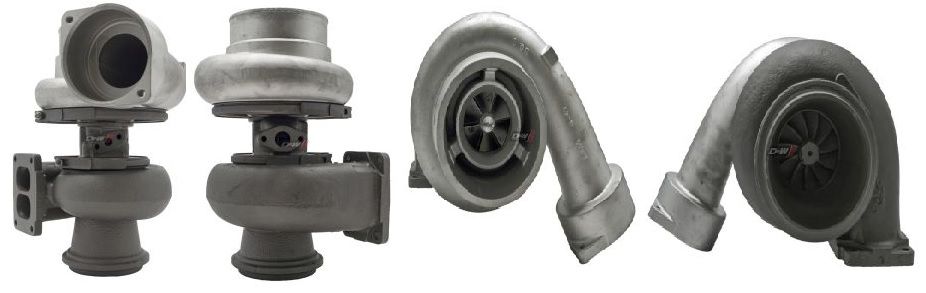

Caterpillar Various BTV5501 Turbo 466423-0005

Item# turbo-various-caterpillar-TC-466423-0005
$1,993.91
Availability: Usually ships the next business day

Product Description


Part Number466423-5005S
Previous Version 466423-0005, 466423-5
Previous Part Number466423-0001, 466423-0002, 466423-0003, 466423-0004
OE numberOR7200, 141-8936, 1418936, 124-3030, 1243030, 0R6984, 6I-4574, 0R6694
DescriptionCaterpillar Various, Truck
CHRA451686-0009 (0R7207, 132-3652) $1,221.94 NEW IN STOCK
Turbo ModelBTV5501
Engine3406E
Engine ManufacturerCaterpillar
Displacement14.64L, 14640 ccm
KW280
RPM Max1800
FuelDiesel
Angle β (turbine housing)345.5°
Angle β (turbine housing) 287.5°
Bearing Housing 451358-0004 $194.43 NEW IN STOCK
Turbine Wheel449074-0001 $783.20 NEW IN STOCK
Comp. Wheel448671-0009 $247.93 NEW IN STOCK
Back plate451440-0002 $90.92 NEW IN STOCK
Heat shield Number409368-0002
Repair Kit468267-0007/468267-0006 $176.95 NEW IN STOCK
Turbine Housing449092-0001 (100-6758)
Compressor Cover447297-0050
Turbine Housing AR1.34
Installation Gasket Kit468190-0000 $59.07 NEW IN STOCK
Listed$2371.88
Replaced By174269
ManufacturerBorg Warner - 3K - Schwitzer, BWTS USA

Applications

Caterpillar Various, Truck with 3406E Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
