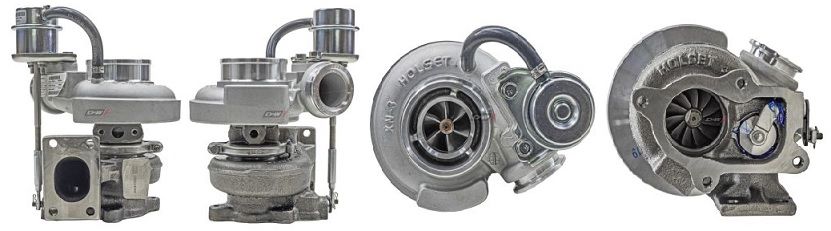

2006- Cummins Agricultural, Industrial HE221W Turbo 4043947

Item# turbo-agricultural-cummins-TC-4043947
$2,096.00
Availability: Usually ships the next business day

Product Description


Part Number4043947
Previous Part Number4033249, 403324900, 403324900H, 4033249H, 4043946,
OE number N/A
DescriptionAgricultural, Industrial
Manufacturer Part Number4955726, 4955726RX
CHRA4043587 (4043584)(1000020149T) $300.00 NEW IN STOCK, MADE IN USA
Turbo Model HE221W
EngineQSB, QSB4, QSB4 Tier-3
Engine ManufacturerCummins
FuelDiesel
Angle α (compressor housing)240°
Angle β (turbine housing)360°
Bearing Housing(Oil Cooled)(1900011200D) $49.00 NEW IN STOCK
Turbine Wheel(1100030027)(Ind. 43. mm, Exd. 36.1 mm, Trm 6.3, 11 Blades) $71.30 NEW IN STOCK
Comp. Wheel(Ind. 43.51 mm, Exd. 60.98 mm, Trm 4.08, 6+6 Blades, Superback)(1200016478T) $116.40 NEW IN STOCK
Back plate49135-00044 (1800016016) $15.94 NEW IN STOCK
Heat shield Number49183-19300 (2030016085) $14.64 NEW IN STOCK
Repair Kit 3575169 (1153035750, 5000050007) $88.80 NEW IN STOCK
Turbine Housing3598743
Compressor Housing4043445
Actuator4044792
Gasket Kit4032448 (2090010086)
Gasket (oil outlet)311496 (210021, 148062, 311496, 3519807, 413671-0000, 409037-0000, 210021-0000) $3.32
ManufacturerHOLSET

Applications

2006- Cummins Agricultural with QSB Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
