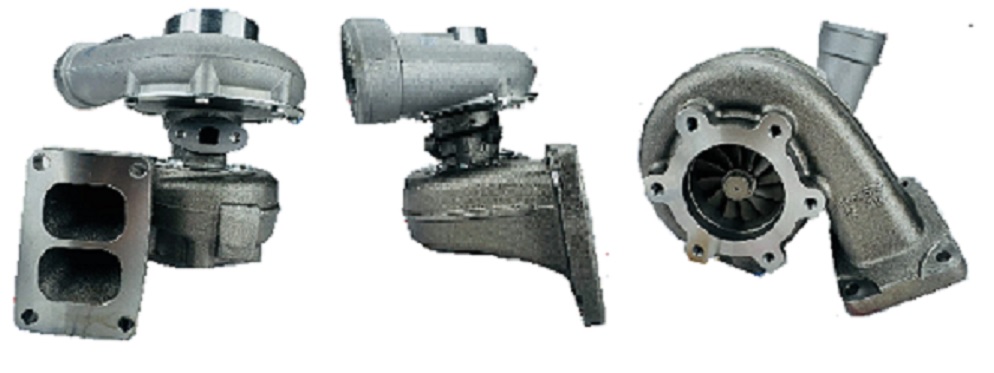

2001- Cummins Industrial GenSet HX50 Turbo 3596901

Item# turbo-industrial-cummins-TC-3596901
$2,140.48
Availability: Usually ships the next business day

Product Description


Part Number3596901
Previous versions3596902, 3596903
OE Number4089828
DescriptionCummins Gen Drive Industrial
Manufacturer Part Number3596902, 3596903
CHRA4027867 $948.57 NEW IN STOCK
Turbo ModelHX50-D9891AZ/S28B11, HX50
EngineVTA28G5, VTA28
Engine ManufacturerCummins
Angle α (compressor housing)45°
Angle β (turbine housing) 346°
Bearing housing3591772 $235.00 NEW IN STOCK
Turbine Wheel3534287 (3522773)(Ind. 86.0 mm, Exd. 77.0 mm, 12 Blades)(1152302436) $297.53 NEW IN STOCK
Comp. Wheel3596135 (Ind. 67. mm, Ed. 99 mm, 7+7 Blades) $169.00 NEW IN STOCK
Back plate3528096 (1153055300) $21.82 NEW IN STOCK
Heat shield Number3529846/3533038 (1153055340) $8.80 NEW IN STOCK
Repair Kit3545627 (1153050750) $85.20 NEW IN STOCK
Turbine Housing3534287
Compressor Cover3596135
Gasket Kit3545577 $18.30 NEW IN STOCK
ManufacturerHOLSET

Applications

2001- Cummins Industrial with VTA28-G5 Gen Set Engine

Core Charge

There is a $400.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
