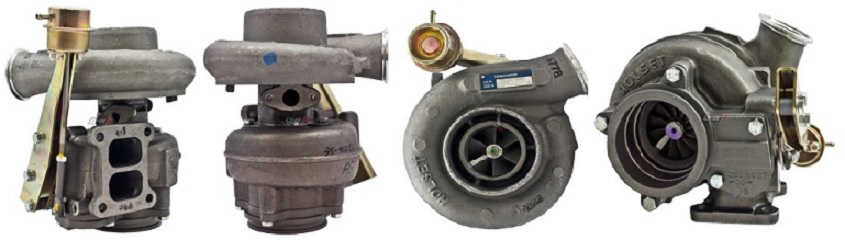

1996-01 Cummins Fire pump Industrial HX4W Turbo 3537569

Item# turbo-industrial-cummins-TC-3537569
$1,681.93
Availability: Usually ships the next business day

Product Description


Part Number 3537569
Previous Version 3537568
OE number 3802866
DescriptionFire pump Industrial
CHRA3538379 $450.00 NEW IN STOCK, MADE IN USA
Turbo ModelHX40W-B8594L/FA19JD8, HX40W
Engine 6CTAA
Engine Manufacturer Cummins
KW239/325
Displacement 6 Cylinders
FuelDiesel
Angle α (compressor housing)30/225°
Angle β (turbine housing) 15/222°
Bearing Housing 3537112 (3593878, 4038197) $89.00 NEW IN STOCK
Turbine Wheel3522879/3535359 (Ind. 76. mm, Exd. 64. mm, 12 Blades)(1152301436) $159.00 NEW IN STOCK
Comp. Wheel3537170 (3594833, 3599550)(Ind. 60. mm, Exd. 86. mm, 7+7 Blades, super-back) $74.76 NEW IN STOCK
Back plate3530923 (1154351300) $33.48 NEW IN STOCK
Heat shield Number3519304 (3519302)(1152301340) $24.95 NEW IN STOCK
Repair Kit3575169 (1153035750) $88.80 NEW IN STOCK
Gasket (oil outlet)210060 (2475013) $4.48
Replaced By3537568
ManufacturerHOLSET

Applications

1996-01 Cummins Industrial Fire Pump with 6CTAA Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
