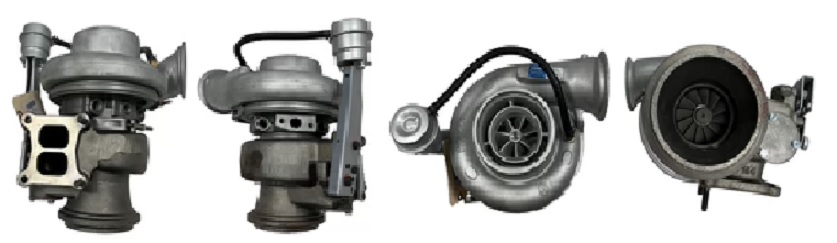

2005- Cummins Industrial Engine HX55W Turbo 4037630

2005- Cummins Industrial Engine HX55W Turbo 4037630
Item# turbo-industrial-cummins-TC-4037630
$1,982.50
Availability: Usually ships the next business day

Product Description


Part Number4037630
Previous Version4037629, 4037633, 4037634, 4037634H, 4089862, 408986200, 4089862NX, 4089862RX
OE number4089860, 4089860NX, 4089860RX
DescriptionIndustrial Engine
CHRA4032308 (4032834, 3768416, 3768416H, 4032834H) $550.00 NEW IN STOCK, MADE IN USA
Turbo Model HX55W
EngineQSM2, QSM2/3 Tier-3
Engine ManufacturerCummins
Angle α (compressor housing)264º
Angle β (turbine housing)130º
Bearing Housing3593343 (3593342, 4027508)(Water Cooled) $186.02 NEW IN STOCK
Turbine Wheel3535983 (353598300, 3535983H)(Ind. 85.8 mm, Exd. 76.95 mm, 12 Blades)(1153055436) $168.00 NEW IN STOCK
Comp. Wheel4035887 (4036317, 4036315)(Ind. 71. mm, Exd. 99.01 mm, Trm 51, 7+7 Blades) $68.00 NEW IN STOCK
Back plate3528096 (352809600)(1153055300) $21.82 NEW IN STOCK
Heat shield Number3533038 (3529846, 353303800, 352984600)(1153055340) $13.22 NEW IN STOCK
Repair Kit3580762 (3575181, 358076200, 357518100)(1153055750) $88.00 NEW IN STOCK
Turbine Housing3592774 $1159.47
Compressor Cover4036914 $390.22
Actuator4037623 (4037622, 4030835) $193.58
Gasket Kit4030841
Gasket (turbine inlet)210847 (Inox Steel) $33.00
Gasket (oil outlet)210060 (409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585) $4.20
Replaced By4037629
ManufacturerHOLSET

Applications

2005- Cummins Industrial with QSM2, QSM3 Engine

2005- Cummins Various with QSM2, QSM3 Engine

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
