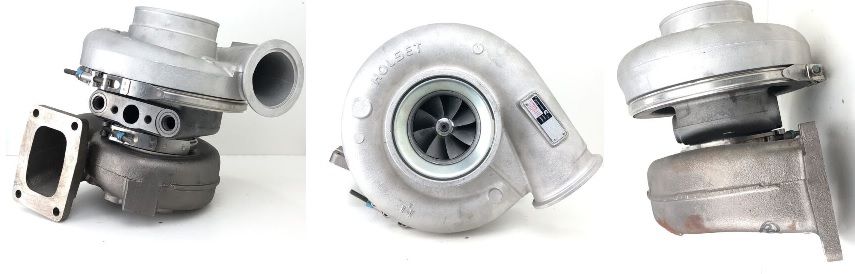

2003- Cummins Industrial HX60W Turbo 4036455

2003- Cummins Industrial HX60W Turbo 4036455
Item# turbo-commercial-cummins-TC-4036455
$2,695.49
Availability: Usually ships the next business day

Product Description


Part Number 4036455
OE number 4027403, 4089739, 4089739RX, 4089739NX
Description Industrial, Marine
CPL8516
Manufacturer Part Number4036456, 4043285, 4043286
CHRA4027403 (4027403H) $1229.09 IN STOCK
Turbo ModelHX60-0988C/AW25VA1, HX60
Engine KTA19GC, KTA19GC CM558, KTA19, KTA38, KTA38GC
Engine Manufacturer Cummins
FuelCNG
S/N D483007CX03, D483007CG01, D483007CG04, D483007CX03, D483008GD01, D483008GX03
Angle α (compressor housing) 110º
Angle β (turbine housing)360º
Bearing Housing3590016 (3590016H)(Oil Cooled) $398.37 IN STOCK
Turbine Wheel3532198 (353219800)(Ind. 86.35 mm, Exd. 97. mm, Trm 17.05, 12 Blades) $698.56 IN STOCK
Rotor Assembly4027518
Comp. Wheel3531538 (3531538H)(Ind. 80. mm, Exd. 113. mm, Trm 9.25, 8+8 Blades, Superback) $295.00 NEW IN STOCK
Back plate3531917 (3531917H) $67.06 NEW IN STOCK
Heat shield Number3519155 (18373, 351915500) $15.58 NEW IN STOCK
Repair Kit3545345 (351915500, 4027880, 4027881, 3580568)(1153060750) $125.00 NEW IN STOCK
Turbine Housing3592465
Compressor Cover3591397
ManufacturerHOLSET

Applications

2003- Cummins Industrial Gas Compression Engine with KTA19, KTA38 Engine

Core Charge

There is a $400.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
