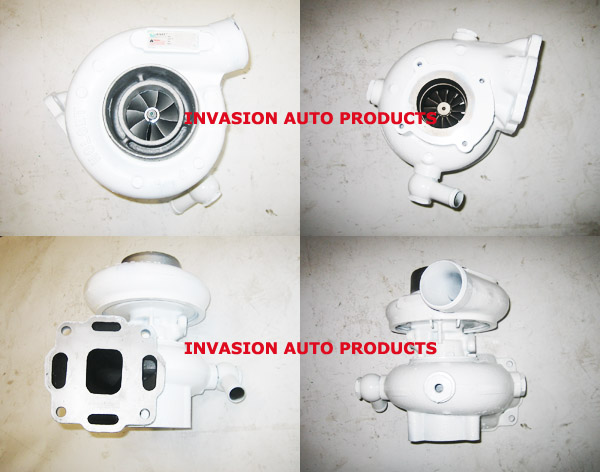

2003- Cummins (CTT) Marine HX40M Turbo 4035781

2003- Cummins (CTT) Marine HX40M Turbo 4035781
Item# turbo-marine-cummins-TC-4035781
$2,108.11
Availability: Usually ships the next business day

Product Description


Part Number4035781
Previous versions4035781H, 4035782, 4035782H, 4038244
OE number4089816, 408981600
DescriptionCummins (CTT) Marine
CHRA4027283 (4027283H) $300.00 NEW IN STOCK, MADE IN USA
Manufacturer Part Number4038244, 4035782
Turbo ModelHX40-L8294T/J13S3, HX40M
Engine Model6B, QSB
Displacement5.9L, 5900 ccm
KW 355/380
FuelDiesel
Angle α (compressor housing)241°
Angle β (turbine housing)284/301°
Bearing Housing 3532632 (3532631, 3539694, 3599943, 4027754, 4035136, 4036549)(Oil Cooled)(1153040450, 1900011016) $85.00 NEW IN STOCK
Turbine Wheel3536624 (3525687)(Ind. 75.92 mm, Exd. 61.59 mm, Trm 10.96, 12 Blades) $118.00 NEW IN STOCK
Comp. Wheel3599591 (3525358, 3537151)(Ind. 60.93, Exd. 81.22, 8+8 Blades, Superback)(1152301701, 1200016068) $66.25 NEW IN STOCK
Back plate3530923 (1154351300, 1800016009) $21.48 NEW IN STOCK
Heat shield Number3519302 ()(1152301341, 2030016031) $14.00 NEW IN STOCK
Repair Kit3575169 (1153035750, 5000020021) $88.80 NEW IN STOCK
Turbine Housing (Water-Cooled)4035833 (3599050) $669.64
Compressor Cover3536623 $283.38
Gasket (turbine inlet)210849 (8027510)(Stainless Steel)
Gasket (turbine outlet)210850 (Inox Steel)
Gasket oil inlet210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) $4.48
Gasket (oil outlet)210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) $3.32
ManufacturerHOLSET
ConditionRebuilt

Replaces 4035782

Brand New Listed: $2950.00

Applications

2003- Cummins Marine with QSB Engine

Core Charge

There is a $500.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
