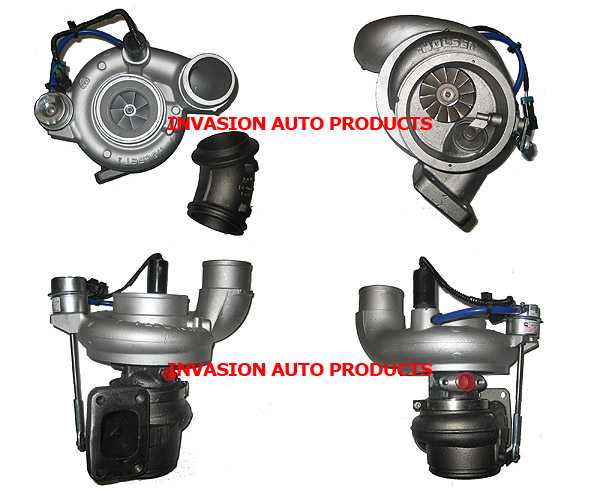

2004.5-07 Dodge, Cummins Truck HY35W, HE351CW Turbo 4043600

2004.5-07 Dodge, Cummins Truck HY35W, HE351CW Turbo 4043600
Item# turbo-truck-cummins-TC-4043600
$995.00
Availability: Usually ships the next business day

Product Description


Part Number4043600
Previous Part Number4036835, 4036836, 403683600HX, 4036836H, 4036836HX, 4037001, 4037002
OE number4089673, 4089673NX, 4089673RX, 4089797, 408979700, 4089797NX, 4089797RX
Cross Part Numbers4036835, 4037002, 4089797, 4037001, 5143256AA, R5143256AA
DescriptionChrysler MY4.5 Pickup Truck,Dodge, Cummins Truck Pick-Up
CHRA4032347 (1154351900,1000020133) $299.00 NEW IN STOCK, MADE IN USA
Turbo ModelHY35W, HE351CW
EngineISB, ISB5.9, ISB6
Engine5.9 L, 5900 ccm
Engine ManufacturerCummins
FuelDiesel
KW239/325 HP
Angle α (compressor housing)225º
Angle β (turbine housing) 165º
Bearing Housing4038233 (Oil Cooled)(1154351450, 900011237B) $69.00 NEW IN STOCK
Turbine Wheel4035271 (Ind. 65.2 mm, Exd. 57.96 mm, 12 Blades)(1154351435, 1100-016-079) $187.00 NEW IN STOCK
Comp. Wheel4035879 (4035879, 4043377)(Ind. 59.99 mm, Exd. 86.05 mm, 7+7 Blades, Superback)(1154351400, 1200016234) $66.00 NEW IN STOCK
Back plate3530923 (1154351300, 18000160091) $22.61 NEW IN STOCK
Heat shield Number3519302 (1152301340, 2030016031) $14.86 NEW IN STOCK
Repair Kit4031484 (1154351751, 5000020029) $96.03 NEW IN STOCK
Turbine Housing4042138 $549.21
Compressor Cover4036782
Actuator3599891 (2061016282) $163.56
ManufacturerHOLSET
ConditionNEW
List Price$2498.38

Applications

2004.5-07 Dodge, Cummins Truck Pick-Up with 5.9L Engine

2003-07 Ram 3500 Series 2WD Dually Cummins 5.9L, 24 Valve Inter-cooled Turbo; 6 spd. standard Engine ISB

Core Charge

There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
