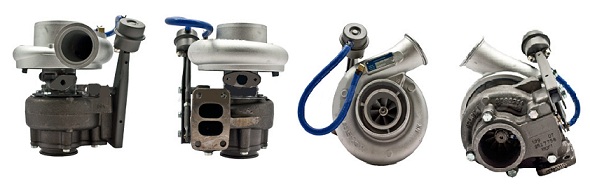

2001- Cummins KCEC Truck HX35W Turbo 3596628

2001- Cummins KCEC Truck HX35W Turbo 3596628
Item# turbo-truck-cummins-TC-3596628
$1,945.60
Availability: Usually ships the next business day

Product Description


Part Number3596628
Previous Part Number3596631
OE number4089123
Year2001-
Description Cummins Komatsu PC220, PC270 Excavator, KCEC Truck
CHRA4027436 $350.00 NEW IN STOCK, MADE IN USA
Turbo ModelHX35W-E7745L/E12PB11, HX35W
Engine 6B
Engine Manufacturer Cummins
Displacement5.9L, 5900 ccm
Fuel Diesel
Angle α (compressor housing) 300°
Angle β (turbine housing) 360°
Bearing Housing3532630/4027729 (79.50 mm) $169.00 NEW IN STOCK
Turbine Wheel3519336/3595832 (Ind. 70. mm, Exd. 60. mm, 11 Blades) (1152301435) $155.42 NEW IN STOCK
Comp. Wheel3599650/3599594 (Ind. 52. mm, Exd. 78. mm, 7+7 Blades, Superback) $79.00 NEW IN STOCK
Back plate3530923 (1154351300) $33.48 NEW IN STOCK
Heat shield Number3519304 (3519302)(1152301340) $24.95 NEW IN STOCK
Repair Kit3575169 (1153035750) $88.80 NEW IN STOCK
Actuator4030275
Gasket Kit3545575 (1900100057)
Gasket (turbine inlet)409039-0000 (Inox Steel)(409039-0001, 210019, 2405022)(1900000006) $13.52
Gasket (turbine outlet)210226 (2405066) (Stainless Steel) $29.00
Gasket oil inlet210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) $4.48
Gasket (oil outlet)210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) $3.32
ManufacturerHOLSET

Applications

2001-Cummins Truck KCEC with 6B Engine

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
