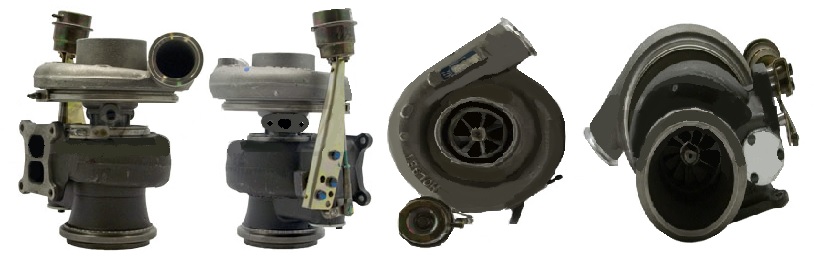

1998- Cummins Various HX55W Turbo 4035301

1998- Cummins Various HX55W Turbo 4035301
Item# turbo-various-cummins-TC-4035301
$1,390.00
Availability: Usually ships the next business day

Product Description


Part Number4035301
Previous versions 3592775, 3592776, 3592776H, 3800858, 380085800, 3800858NX, 3800858RX
OE number4035280
DescriptionVarious
CHRA3580726 (3580726H, 4030942, 5451478)(1153055900) $350.00 NEW IN STOCK, MADE IN USA
Turbo ModelHX55W-E9861M/H19J11D, HX55W
Engine CECO ISM
Engine Manufacturer Cummins
FuelDiesel
Angle α (compressor housing)264°
Angle β (turbine housing)130°
Bearing Housing3535704 (353557500, 3535575)(1153055450) $119.25 NEW IN STOCK
Turbine Wheel3535983 (353598300)(Ind. 85.8 mm, Exd. 76.95 mm, 12 Blades)(1153055436, 1100016122B) $198.00 NEW IN STOCK
Comp. Wheel3534329 (4040739, 4040740, 4041666)(Ind. 65.1 mm, Exd. 99.06 mm, 12 Blades)(1153055400, 1200016217) $90.00 NEW IN STOCK
Back plate3528096 (352809600)(1153055300, 1800016024) $21.82 NEW IN STOCK
Heat shield Number3529846 (3533038)(353303800, 352984600)(1153055340) $18.80 NEW IN STOCK
Repair Kit3580762 (3575181)(358076200, 357518100)(1153055751, 5000020023) $88.00 NEW IN STOCK
Actuator4030574
Gasket (turbine inlet)210847 Inox Steel $33.00
Gasket (oil outlet)210060 (311585, 148062, 409267-0003, 409267-0002, 210060-0000, 51914)(Paper) $4.48
Gasket Kit3800279 (215183)(2090505445) $49.00
ManufacturerHOLSET

Applications

1998- Cummins Various with CECO ISM Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
