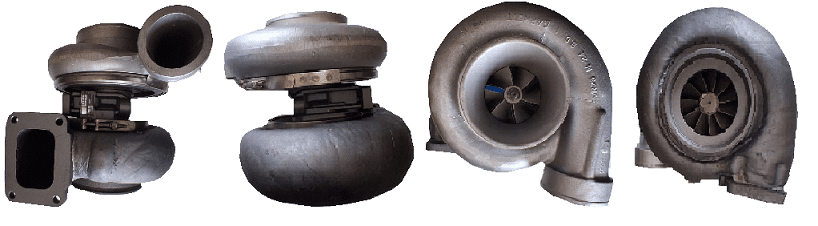

Detroit Diesel Industrial Engine & Power Units TV7303 Turbo 466039-0002

Item# turbo-industrial-detroit-TC-4660390002
$2,986.66
Availability: Usually ships the next business day

Product Description


Part Number466039-5002S
Previous versions466039-9002S, 466039-0002, 466039-2
OE number23508809, R23508809
DescriptionIndustrial Engine & Power Units
Manufacturer Part Number466039-9001S
CHRA442032-0017 (442032-5017S)(23502109) $1,411.09
Turbo ModelTV7303
Engine12V149TIB, 20V149TIB
Displacement29302/48834 ccm, V12/V20 Cylinders
Engine Manufacturer Detroit
KWV12/2500
FuelDiesel
Bearing Housing442028-0001 (8925742)(Oil cooled) $262.91 NEW IN STOCK
Turbine Wheel442029-0020 (23502111)(Ind. 84.79 mm, Exd. 96.85 mm, 11 Blades)(1101675436) $389.60 NEW IN STOCK
Comp. Wheel443120-0001 (Ind. 70.9, Exd. 102.3,Trm 48*54, 7+7 Blades)(23501285) $290.81 NEW IN STOCK
Back plate442027-0001 (8925746) $154.46 NEW IN STOCK
Heat shield Number407967-0000 (5149173) $66.98 NEW IN STOCK
Repair Kit468267-0000 (1101678752) $91.60 NEW IN STOCK
Turbine Housing441881-0018 (23516039) $549.36 NEW IN STOCK
Compressor Cover444423-0034 (23514746)
Turbine Housing AR1.08
Gasket oil inlet129119 (1900000035)(201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900) $8.40
Gasket (oil outlet)210018 (129120, 210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763) (1900000025) $4.38
23508809Superseded by 23514798
ManufacturerHoneywell-Garrett

Applications

Detroit Diesel Industrial Engine & Power Units With 12V149TIB, 20V149TIB Engine

Core Charge

There is a $500.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
