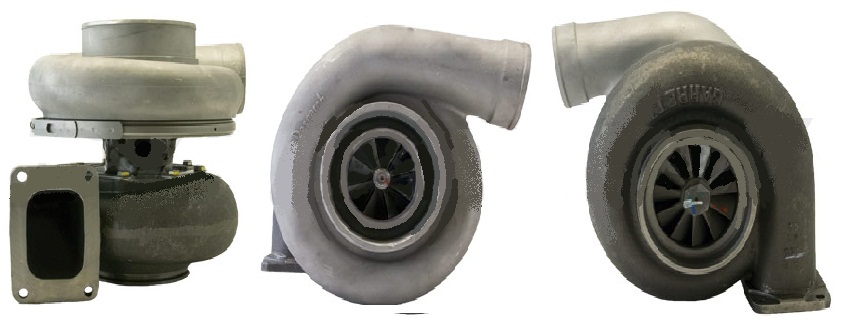

Detroit Diesel Industrial, Truck T18A40 Turbo 407370-0007

Item# turbo-Industrial-detroit-TC-4073700007
$2,100.00
Availability: Usually ships the next business day

Product Description

Part Number 407370-5007S
Previous Version 407370-0007, 407370-0002
OE Number5103840, 05141676, 5141676, R5103840, R5141676, 05103840
DescriptionVarious, Industrial Truck
CHRA407302-0001 (407302-5001S, 407302-0005)(05149299, 118002XR, 5149637, R5149637, 5199020) $975.00 NEW IN STOCK, MADE IN USA
Turbo Model T18A40
Engine Model16V71T, 16V71TI
Engine Manufacturer Detroit Diesel
Fuel Diesel
Displacement 39.1L, 3900 ccm
Angle α (compressor housing) 345°
Angle β (turbine housing) 31°
Bearing Housing407214-0010 (407214-0011)(3022514, 5149403, 5199024)(Oil Cooled) $210.00 NEW IN STOCK
Turbine Wheel407218-0006 (407293-0004)(207424, 4061087, 6374154, 23511699, 5149298, 202851)(Ind. 95.65 mm, Exd. 127.05 mm, 11 Blades) $248.56 NEW IN STOCK
Comp. Wheel407869-0000 (5199023)(Ind. 82.65 mm, Exd. 127.0 mm, 8+8 Blades, Billet) $299.90 NEW IN STOCK
Back plate 407215-0000 (407215-0006)(5199028, 207427, 490335, 637417, 3004583, 5149399, 4072156) $208.09 NEW IN STOCK
Heat shield Number406687-0002 (5199055)(Cast) $90.91 NEW IN STOCK
Repair Kit468107-0000 (1100181750) $93.60 NEW IN STOCK
Turbine Housing407738-0001
Compressor Cover407738-0001
Turbine Housing AR1.70
Gasket (turbine inlet)409038-0001 (210835-0000, 9749, 7M7273) $14.02
Gasket oil inlet 210019 (409266-0003, 3819900, 9737, 1S6595, 201049, 129119)(1900000035) $4.40
Gasket (oil outlet)210018 (409267-0002, 3500682, 3519763, 3709738, 9738, 9988, 1S4810, 201048, 129120)(1900000025) $4.22
ManufacturerHoneywell-Garrett
ConditionRebuilt

Replaced by 407370-0006

Applications

Detroit Diesel Industrial, Truck with 16V71T, 16V71TI Engine

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
