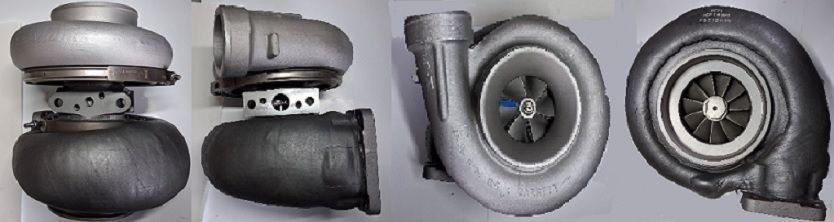

Detroit Diesel Marine TV7308 Turbo 466623-0001

Item# turbo-marine-detroit-diesel-TC-4666230001
$4,516.27
Availability: Usually ships the next business day

Product Description


Part Number466623-5001S
Previous Version466623-0001, 466623-1, 466623-9001
OE number23514523, R23514523
DescriptionMarine, Gen Set
CHRA442032-0020 (442032-9020S, 23502747) $949.42 NEW IN STOCK, MADE IN USA
Turbo ModelTV7308
Engine6V92TA, 6V92T
Displacement9.0L, 9046 ccm, 6V Cylinders
KW325
FuelDiesel
Angle α (compressor housing) 140º
Angle β (turbine housing) 340º
Bearing Housing442028-0001 (8925742)(Oil Cooled) $201.08 NEW IN STOCK
Turbine Wheel442029-0020 (23502111))(Ind. 84.79 mm, Exd. 96.85 mm, 11 Blades)(1101675436) $389.60 NEW IN STOCK
Comp. Wheel441829-0002 (8925745, 4P3815)(447033-0003)(Ind. 75.36mm, Exd. 102.25 mm, 6+6 Blades, Superback) $160.00 NEW IN STOCK
Back plate442027-0001 (8925746) $154.46 NEW IN STOCK
Heat Shield / Shroud407967-0000 (5149173) $66.98 NEW IN STOCK
Repair Kit468267-0000 (23514215)(1101678752) $91.60 NEW IN STOCK
Turbine Housing (Water Cooled)448553-0006 (23515375) $1,642.60 NEW IN STOCK
Compressor Cover441880-0001 $399.21
Turbine Housing AR1.08
Gasket (turbine inlet)409038-0001 (7M7273, 132040, 210835-0000, 9749) $17.02
Gasket oil inlet 129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)(1900000035) $4.40
Gasket (oil outlet)129120 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025) $4.38
ManufacturerHoneywell-Garrett

Applications

Detroit Diesel Marine with 6V92TA, 6V92TA Engine

Core Charge

There is a $700.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
