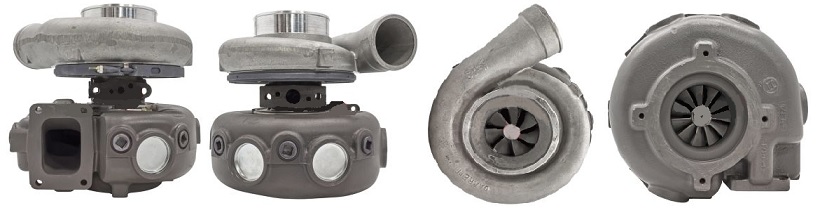

Detroit Diesel Marine TW8401 Turbo 465797-0001

Detroit Diesel Marine TW8401 Turbo 465797-0001
Item# turbo-marine-detroit-diesel-TC-4657970001
$2,395.84
Availability: Usually ships the next business day

Product Description


Part Number465797-5001S
Previous Version4657970001, 465797-5001, 465797-9001, 4657970001, 4657975001, 4657979001, 465797-1
OE number23503617, R23503617
DescriptionMarine
CHRA442032-0023 (442032-5023S)(23503618) $1895.54 NEW IN STOCK
Turbo ModelTW8401
Engine6L71TI
Displacement6.9L, 6981 ccm, 6 Cylinders
KW485
FuelDiesel
Angle α (compressor housing) 349º
Angle β (turbine housing) 356º
Bearing Housing442028-0001 (8925742, 08925742)(Oil Cooled) $201.08 NEW IN STOCK
Turbine Wheel442029-0014 (442029-0017, 183011-0000)(23501293, 8925762, 08925762)(Ind. 95.91 mm, Exd. 107.25 mm, 11 Blades)(1101083435) $471.75 NEW IN STOCK
Comp. Wheel441831-0001 (23501536)(Ind. 85.38 mm, Exd. 117.6 mm, Trim 56/55, 7+7 Blades, Super Back) $188.46 NEW IN STOCK
Back plate442732-0001 (8928658) $133.00 NEW IN STOCK
Heat shield Number407657-0004 (409794-0000)(9N2037, 9N3701, 8925757)(1101680340) $22.00 NEW IN STOCK
Repair Kit468267-0000 (23514215)(1101678752) $91.60 NEW IN STOCK
Turbine Housing (Water Cooled)409339-0106 (23503619, 7C6708) $1634.19
Cap Plug Turbine Housing 400831-0001
Compressor Cover443568-0012 (23502214) $418.83
Turbine Housing AR1.37
Gasket (turbine inlet)409038-0001 (409038-0000, 1S4295, 132040, 205396, 202873, 3500683, 1215736, 210017-0000, 210835-0000, 9749, 7M7273)(1900000003) $15.49
Gasket (turbine inlet)129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)(1900000035) (Paper) $4.48
Gasket (oil outlet)129120 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025) $4.38
ManufacturerHoneywell-Garrett

Applications

Detroit Diesel Marine with 6L71TI Engine

Core Charge

There is a $500.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
