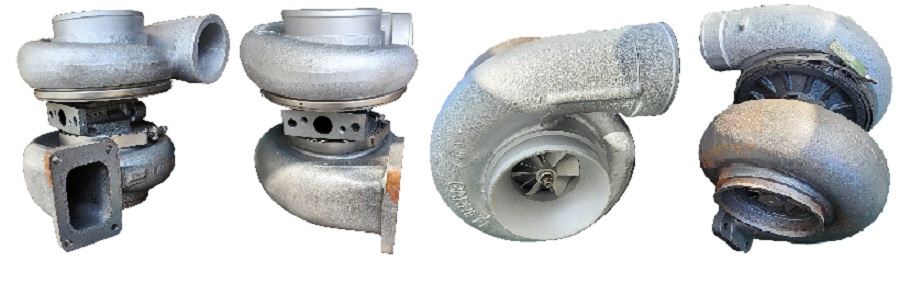

Detroit Diesel Marine TW8301 Turbo 466926-0001

Detroit Diesel Marine TW8301 Turbo 466926-0001
Item# turbo-marine-detroit-diesel-TC-4669260001
$2,817.24
Availability: Usually ships the next business day

Product Description


Part Number466926-5001S
Previous Version466926-0001, 466926-1
OE numberR23500956, 23500956, 023500956
DescriptionMarine
CHRA442032-0002 (442032-5002S)(8925755, E8925755, R8925755) $981.60 NEW IN STOCK
Turbo ModelTW8301
Engine6V92TAB, 8V92TA, 6V92TAB
Displacement 9046/18100/9000 ccm, 6V/V8/12V Cylinders
Power365/550/1080 HP
FuelDiesel
Angle α (compressor housing)128°
Angle β (turbine housing)340°
Bearing Housing 442028-0001 (8925742, 08925742)(Oil cooled) $262.91 NEW IN STOCK
Turbine Wheel442029-0014 (442029-0017, 183011-0000)(8925762, 08925762) (Ind. 86.6 mm, Exd. 108. mm, 6+6 Blades)(1101083435, 1100020188) $484.07 NEW IN STOCK
Comp. Wheel409132-0009 (8923990, 08923990) (Ind. 86.6 mm, Exd. 108. mm, 6+6 Blades)(1101081400) $197.96 NEW IN STOCK
Back plate442027-0003 (8925764, 08925764) $156.96 NEW IN STOCK
Heat shield Number407657-0004 (8925757, 08925757, 409794-0000, 9N2037, 9N3701, 180021-0000, 180121-0000)(1101680340) $47.99
Repair Kit468267-0000 (23514215)(1101678752) $91.60 NEW IN STOCK
Turbine Housing409339-0105 (23501604, 6N9908) $1,981.86 NEW IN STOCK
Compressor Cover441880-0002 (8925758, 08925758) $300.08
Turbine Housing AR1.19
Gasket (turbine inlet)409038-0001 (210835-0000, 9749, 132040, 7M7273) $14.02
Gasket (turbine inlet)210255 (Copper layers)
Gasket oil inlet129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)(1900000035)(Paper) $4.40
Gasket (oil outlet)210018 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025) $4.38
Gasket Kit441575-0000 (318417, 210822-0000) $17.44
Replaced By465988-0003
ManufacturerHoneywell-Garrett

Applications

Detroit Diesel Marine with 6V92TAB, 8V92TA, 6V92TAB Engine

Core Charge

There is a $800.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
