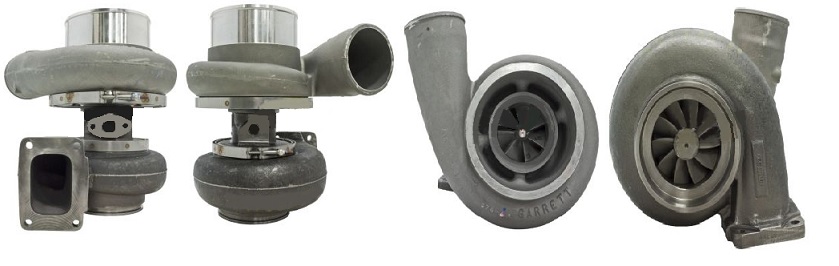

Detroit Diesel MTU Industrial Genset BTV7501 Turbo 725731-0009

Detroit Diesel MTU Industrial Genset BTV7501 Turbo 725731-0009
Item# turbo-industrial-detroit-TC-7257310009
$2,993.80
Availability: Usually ships the next business day

Product Description


Part Number725731-5009S
Previous Version725731-0002, 725731-5009, 725731-5009S, 725731-9002, 725731-9009, 7257310002, 7257310009, 7257315002, 7257315009, 7257315009S, 7257319002, 7257319009
OE Number52610100023, X00009778, EX52610100001, EX52610100023, X52610100001, X52610100023
DescriptionDetroit Diesel MTU Industrial Genset
Turbo ModelBTV7501, GTA5523B
CHRA712371-0165 (712371-5165S)(X00041098) $1,959.16 NEW IN STOCK
Engine Manufacturer Detroit Diesel
Displacement48.0L, 48000 ccm, 12 cylinders
Engine 12V4000
KW2226 HP
FuelDiesel
Bearing Housing706666-0030 (Oil Cooled) $166.51 NEW IN STOCK
Turbine Wheel451938-0006 (451938-0008)(Ind. 72.1 mm, Exd. 91. mm, 12 Blades, Boreless) $966.23 NEW IN STOCK
Comp. Wheel712748-0001 (Ind. 74.8 mm, Exd. 108.0 mm, 7+7 Blades, Boreless, Superback) $484.88
Back plate710269-0008 (430612-0003, 444655-0001) $21.80 NEW IN STOCK
Heat shield, Shroud707843-0001 $17.26 NEW IN STOCK
Repair Kit468267-0007 (468267-0006, 468267-0000) (23514215) $95.33 NEW IN STOCK
Turbine Housing441881-0066 $232.22
Compressor Cover706570-0004 $492.44
Turbine Housing AR1.23
Gasket (turbine inlet)409038-0001 (1215736 210835-0000, 9749, 7M7273) $14.02
Gasket oil inlet129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)(1900000035) $4.40
Gasket (oil outlet)210018 (129120, 210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025) $4.38
ManufacturerHoneywell-Garrett

Applications

Detroit Diesel MTU Industrial Genset 12V4000

Core Charge

There is a $500.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
