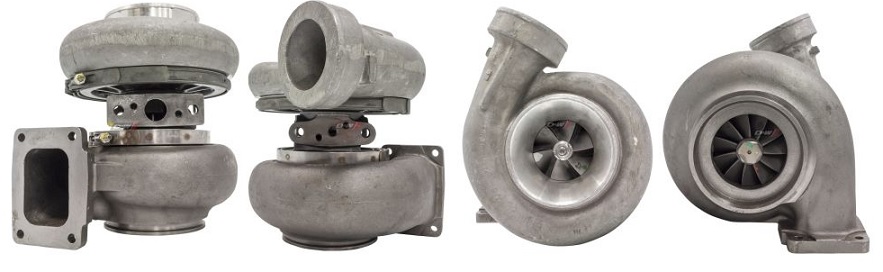

Detroit Diesel Truck TV7512 Turbo 465369-0006

Item# turbo-industrial-detroit-TC-4653690006
$1,890.00
Availability: Usually ships the next business day

Product Description


Part Number466360-5006S
Previous Version466360-0006, 466360-9006, 466360-6
OE Number23508797, 500369, 500\369, R23508797
DescriptionIndustrial Generator, Military, Automotive
CHRA442032-0030 (442032-9030S, 442032-0020, 23508859, 23502747) $949.42
Turbo ModelTV7302
Engine Model6V92TAB
FuelDiesel
Displacement9050 ccm, 6V Cylinders
KW 265/330/400 HP
Angle α (compressor housing)180°
Angle β (turbine housing)270°
Bearing Housing442028-0001 (8925742)(Oil Cooled) $201.08 NEW IN STOCK
Turbine Wheel442029-0020 (23502111))(Ind. 84.79 mm, Exd. 96.85 mm, 11 Blades)(1101675436) $389.60 NEW IN STOCK
Comp. Wheel441829-0009 (23508860,8925745, 4P3815 )(441829-0002, 447033-0003)(Ind. 76.6 mm, Exd. 102.3 mm, Trm 56*55, 6+6 Blades, Superback) $160.00 NEW IN STOCK
Back plate442027-0001 (8925746) $154.46 NEW IN STOCK
Heat Shield / Shroud407967-0000 (5149173) $66.98 NEW IN STOCK
Repair Kit468267-0000 (23514215)(1101678752) $91.60 NEW IN STOCK
Turbine Housing443110-0015
Compressor Cover441880-0001 (8925753) $327.19
Turbine Housing AR1.23
Gasket (turbine inlet)409038-0001 (7M7273, 132040, 210835-0000, 9749) $17.02
Gasket oil inlet 129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)(1900000035) $4.40
Gasket (oil outlet)129120 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025) $4.38
ManufacturerHoneywell-Garrett

Applications

Detroit Diesel Truck with 6V92TAB Engine, 9050 ccm, 6/V12 Cylinders, 330/400 HP

Core Charge

There is a $400.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
