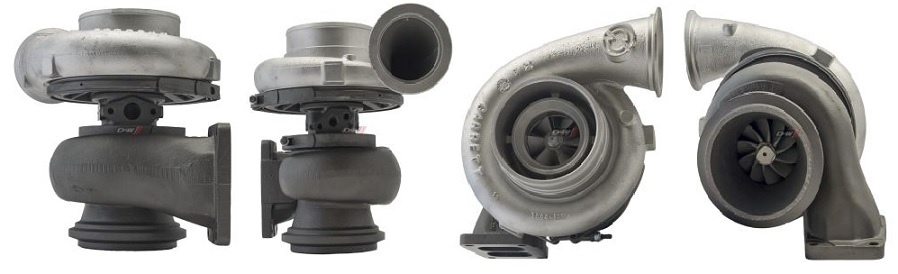

For Phone order call 818-506-8005 1-877-42TURBO(TOLL Free)1993-00 Detroit Diesel Busses, Highway Truck, Various GTA4294BN Turbo 714785-0003
Product Description
| Part Number | 714785-5003S |
| Previous Version | 714785-0003, 714785-3, 471087-0003, 471087-0004, 471087-0005, 471087-0006, 471087-5003, 471087-5004, 471087-5005, 471087-5006, 471087-9003, 471087-9004, 471087-9005, 471087-9006, 4710870003, 4710870004, 4710870005, 4710870006, 4710875003, 4710875004, 4710875005, 4710875006, 4710879003, 4710879004, 4710879005, 4710879006, 714785-9003S |
| OE number | 23528031, R23528031 |
| Description | Highway Truck, Various |
| CHRA | 712402-0003 (712402-5003S, 23528032) $650.00 NEW IN STOCK |
| Turbo Model | GTA4294, GTA4294BN |
| Displacement | 8.5L, 8500 ccm, 4 Cylinders |
| RPM Max | 2100 |
| Fuel | Diesel |
| Angle α (compressor housing) | 4° |
| Angle β (turbine housing) | 274° |
| Bearing Housing | 712342-0003 (711886-0001)(Oil Cooled) $88.00 NEW IN STOCK |
| Turbine Wheel | 714470-0001 (714470-0007)(Ind. 82.65 mm, Exd. 75.23 mm, Trm 15.49, 10 Blades) $180.40 NEW IN STOCK |
| Comp. Wheel | 712340-0008 (712340-0003) $246.75 NEW IN STOCK |
| Back plate | 712339-0001 $75.00 NEW IN STOCK |
| Heat shield Number | 410366-0007 (7C7058) $44.23 |
| Repair Kit | 709153-0001 (709153-0002, 709153-0005, 740659-0002, 13***75)(1102042750) $90.80 NEW IN STOCK |
| Turbine Housing | 451824-0003 (23519857) $553.23 |
| Compressor Cover | 447844-0011 (23519856) |
| Gasket (turbine inlet) | 409038-0000 (132040, 1S4295, 202873, 205396, 9749, 3500683, 210017-0000)(1900000003) $17.21 |
| Gasket oil inlet | 210019 (409266-0003, 3819900, 9737, 1S6595, 201049, 129119)(1900000035) $4.38 |
| Gasket (oil outlet) | 210060 (409267-0003, 409267-0002, 210060-0000, 51914, 148062, 201048, 311585, 3709738, 3500682, 1S4810, 9988, 9738, 3519763, 210018-0000)(Paper)(1900000025) $4.48 |
| Replaced by | 714785-0003, 714785-0004, 714785-0005, 714785-0006, 714785-5003, 714785-5004, 714785-5005, 714785-5006, 714785-9003, 714785-9003S, 714785-9004, 714785-9005, 714785-9006, 7147850003, 7147850004, 7147850005, 7147850006, 7147855003, 7147855004, 7147855005, 7147855006, 7147859003, 7147859003S, 7147859004, 7147859005, 7147859006 |
| Manufacturer | Honeywell-Garrett |
1993-00 Detroit Diesel Busses, Truck Various With Series 50 Engine There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received. This part comes with ONE YEAR unlimited mileage warranty.Applications
Core Charge
Warranty
