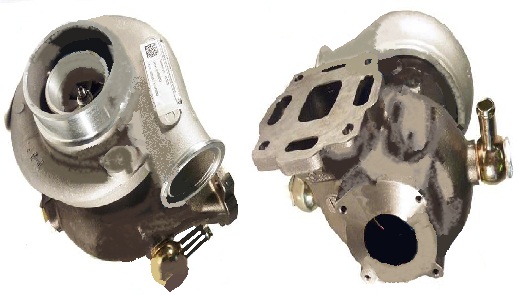

2005- MAN, Doosan Infracore, Daewoo (D.H.I) Marine HX35M Turbo 4040919

2005- MAN, Doosan Infracore, Daewoo (D.H.I) Marine HX35M Turbo 4040919
Item# turbo-marine-doosan-TC-4040919
$2,890.00
Availability: Usually ships the next business day

Product Description


Part Number4040919
Previous Version4033427, 4033428, 4033428H, 4040919H, 4040920
OE Number65091007107, 65091009107, 65.09100-7107, 65.09100-9107
DescriptionDoosan GV180 Marine
CHRA4032342 $1530.00 NEW IN STOCK
Manufacturer Part Number 4040920
Turbo Model HX35M
Engine Manufacturer Doosan, Daewoo (D.H. I)
DisplacementV8 Cylinders
MOTAIR336670
BE TURBO 130530
FuelDiesel
Angle α (compressor housing) 90°
Angle β (turbine housing)90°
Bearing Housing (Water Cooled)3598668 $194.95 IN STOCK
Turbine Wheel3519336 (3595832, 351933600)(Ind. 70. mm, Exd. 60. mm, 11 Blades)(1152301435, 1100030005) $118.40 NEW IN STOCK
Comp. Wheel3599594 (3599646, 4036126)(Ind. 52. mm, Exd. 78. mm, 7+7 Blades, Superback)(1200016158) $53.25 NEW IN STOCK
Back plate3530923 (353092300)(1154351300, 1800016009) $33.48 NEW IN STOCK
Heat shield Number3519302 (3519304, 351930200)(1152301340, 2030016031) $24.95 NEW IN STOCK
Repair Kit4027448 (402744800)(1153035751, 5000020021)(Minor) $58.80 NEW IN STOCK
Turbine Housing (Water Cooled)3521298
Compressor Cover4035120
Gasket Kit3545769 (215149) $35.00
ManufacturerHolset

Applications

2005- MAN, Doosan Infracore, Daewoo (D.H. I) Marine

Core Charge

There is a $500.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
