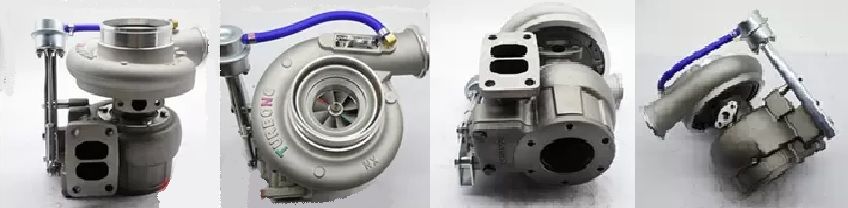

For Phone order call 818-506-8005 1-877-42TURBO(TOLL Free)2007-02 Doosan Infracore Various HX40W Turbo 4046292
Product Description
| Part Number | 4046292 |
| Previous Version | 4033140H, 4046292 |
| OE Number | 65091007139, 65091007071, 65.09100-7139, 65091007139,65.09100-7154, 65.09100-7145, 65.09100-7140 |
| Description | Various |
| Manufacturer Part Number | 4045584, 4046293 |
| Turbo Model | HX40W |
| CHRA | 4030947 (4030947H) $495.40 NEW IN STOCK, MADE IN USA |
| Engine | DL08 |
| Engine Manufacturer | Doosan, Daewoo (D.H. I) |
| Angle α (compressor housing | 260/270° |
| Angle β (turbine housing) | 280° |
| Bearing Housing | 4027869 (4036830, 3532632, 3599943)(Oil Cooled) $89.00 NEW IN STOCK |
| Turbine Wheel | 3535359 (3522879, 3519892)(Ind. 75.92 mm, Exd. 64. mm, Trm10.41. 12 Blades) $119.00 NEW IN STOCK |
| Comp. Wheel | 4039432 (Ind. 55.82 mm, Exd. 84.68 mm, Trm 5.23. 7+7 Blades, Superback) $181.55 NEW IN STOCK |
| Back plate | 3596448 (1154351300) $26.69 NEW IN STOCK |
| Heat shield Number | 3519302 (1152301340) $14.95 NEW IN STOCK |
| Repair Kit | 4032051 (3545345, 4027880)(1153040750, 1153060750) $93.38 NEW IN STOCK |
| Turbine housing | 4035160 |
| Comp. housing | 4036829 |
| Actuator | 4040146 (4030948) $166.88 |
| Gasket Kit | 3545575 $14.58 |
| Gasket (turbine inlet) | 409039-0000 (409039-0001, 210019, 312617, 2405022, 7C7431)(1900000006) (Inox Steel) $13.52 |
| Gasket (oil outlet) | 210060 (311585, 148062, 2475013)(Paper) $4.48 |
| Gasket (turbine outlet) | 3535001 (3922789)(Inox Steel) $21.64 |
| Manufacturer | Holset |
2007-02 Doosan Infracore Various with DL08 Engine There is a $400.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received. This part comes with ONE YEAR unlimited mileage warranty.Applications
Core Charge
Warranty
