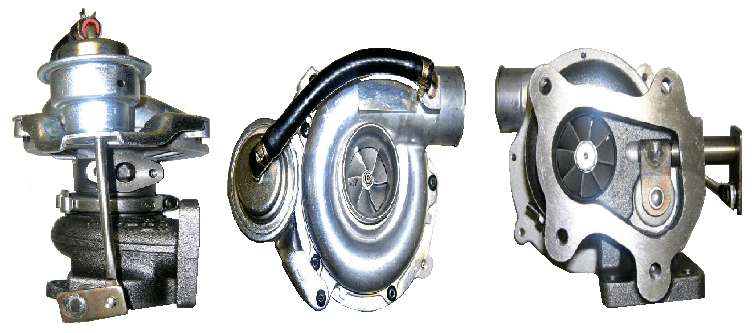

For Phone order call 818-506-8005 1-877-42TURBO(TOLL Free)2004- Isuzu D-MAX RHF4H Turbo VC420037 VIDA
Product Description
| Part Number | VC420037 |
| Part Number | VA420037, VB420037 |
| OE number | 8972402101, 8-97240210-1, 89724-02101, 4T508 |
| V-SPEC. | VIDA |
| Description | Isuzu D-MAX |
| CHRA | VAX40019 (VBX40023)(1450040924, 1000040169) $390.00 NEW IN STOCK, MADE IN USA |
| Turbo Model | RHF4H-64006P12NHBRL362CCZ |
| Engine | 4JA1L |
| Capacity | 2.5L, 2500 ccm |
| Power | 136 HP |
| Fuel | Diesel |
| Angle α (compressor housing) | 114° |
| Angle β (turbine housing) | 27° |
| Bearing housing | (Oil Cooled)(1450040459, 1900011399) NEW IN STOCK |
| Turbine Wheel | (Ind. 44.5 mm, Exd. 37.7 mm, Trm 5.25, 8 Blades)(1450040444, 1100016014) $97.60 NEW IN STOCK |
| Comp. Wheel | (Ind. 35.4 mm, Exd. 47. mm, Trm 5.2, 6+6 Blades, Superback)(1450040412, 1200016359) $35.00 NEW IN STOCK |
| Back plate | (1450050308, 1300016022D) $22.40 NEW IN STOCK |
| Heat Shield | (1450040308, 2030016022) $14.80 NEW IN STOCK |
| Repair Kit | NH449805 (NH449804)(322 T-Brg)(1450050753, 5000080025) $85.00 NEW IN STOCK |
| Turbine Housing AR | 12 |
| Actuator | NH940021 (2061016980) |
| Gasket oil inlet | 210385 (2445130)(Inox Steel) |
| Gasket (oil outlet) | 210243 (2455001, Non Metallic) $2.00 |
| Manufacturer | IHI |
2004- Isuzu D-MAX 2.5L TD Engine 4JA1-L There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received. This part comes with ONE YEAR unlimited mileage warranty.Applications
Core Charge
Warranty
