Home > Force Inductions > TURBO CHARGERS > TRUCK > IVECO > 2007- Iveco Truck HX35W Turbo 4044031

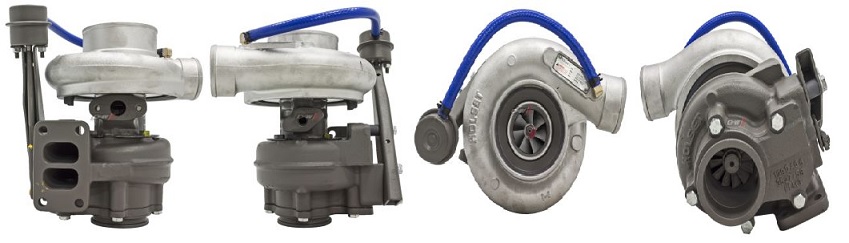

2007- Iveco Truck HX35W Turbo 4044031

2007- Iveco Truck HX35W Turbo 4044031
Item# turbo-truck-iveco-TC-4044031
$1,013.60
Availability: Usually ships the next business day

Product Description


Part Number 4044031
Previous versions4033316, 4033316H, 4044032
OE number504129032, 504129032
DescriptionTruck, Crawler Excavator Kobelco SK-210LC
Manufacturer Part Number4044032
CHRA4032033 (4027825, 4027825H) $300.00 NEW IN STOCK, MADE IN USA
Associated 4033316
Turbo ModelHX35W
EngineCNH NEF
Number of Cylinders 6 Cylinders
Engine ManufacturerIveco
Serial NoYQ09U3687
FuelDiesel
KW 118/150 HP
Angle α (compressor housing)350º
Angle β (turbine housing)360º
Bearing Housing4032218 (4027443, 4032032)(Oil Cooled) $62.00 NEW IN STOCK
Turbine Wheel3595832 (3519336, 351933600)(Ind. 70. mm, Exd. 60. mm, Trm 10.9, 12 Blades)(1152301435, 1100016442) $132.00 NEW IN STOCK
Comp. Wheel3599651 (3532312, 359965100)(Ind. 50. mm, Exd. 78. mm, Trm 9.82, 7+7 Blades, Superback)(1200016661) $66.25 NEW IN STOCK
Back plate3530923 (3530923H)(1154351300, 1800016009) $21.48 NEW IN STOCK
Heat shield Number3519302 (351930200)(1152301340, 2030016031) $14.00 NEW IN STOCK
Repair Kit3575169 (1153035435, 5000020021) $88.80 NEW IN STOCK
Turbine Housing3532299
Compressor Cover4044030
Actuator3598520 (4030934)
Gasket Kit3545575 (1900100057) $16.00 NEW IN STOCK
Gasket cover Plate3535001 (5 Bolt Gasket) $21.64
ManufacturerHOLSET

Applications

2007- Iveco Crawler Excavator, Truck with NEF Engine

Core Charge

There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
