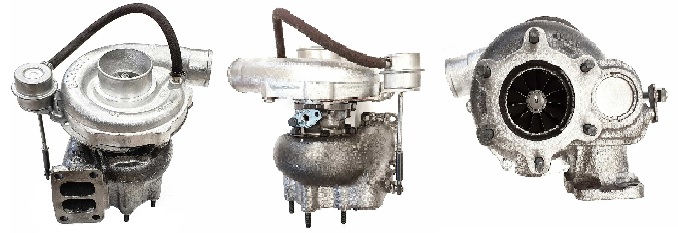

For Phone order call 818-506-8005 1-877-42TURBO(TOLL Free)1997- Iveco Truck, Bus TBP409 Turbo 465427-0007
Product Description
| Part Number | 465427-5007S |
| Previous Version | 465427-0007, 465427-7, 466970-0005 |
| OE Number | 99467664, 500326409, 500326409.0 |
| Description | Truck IVECO 110.21 4X4 Military, Fire Fighting, E18 Euro 2, E21 Euro 2, IVECO E18 Euro 1 |
| CHRA | 447450-0037 (447450-5037S, 408105-0351) $300.00 NEW IN STOCK, MADE IN USA |
| Turbo Model | TBP409 |
| Fitted To Model | 110.21 4X4 Military. trucks E18/21, E18/E21 Fire fighting |
| Engine | 8060.45.4180/4380/5100/5180/5200/5270, 8060.45.4180 |
| Engine Manufacturer | Iveco |
| Displacement | 5800 ccm, 5.8L, 6 Cylinders |
| KW | 201/204 |
| RPM Max | 2700 |
| Fuel | Diesel |
| Angle α (compressor housing) | 115º |
| Angle β (turbine housing) | 215º |
| Bearing housing | 430027-0025 (312379, 407285-0027, 407285-0038, 430027-0022, 430027-0048)(Oil Cooled)(1100030450, 1900011104B, 103110005) $69.00 NEW IN STOCK |
| Turbine Wheel | 446905-0001 (407276-0005, 410188-0002, 410188-0005, 410188-0014, 446249-0004, 451309-0002)(20302)(Ind. 58.35 mm, Exd. 74.2 mm, Trm 9.36, 11 Blades)(20302, 1100040435, 1100030024, 101090023) $115.00 NEW IN STOCK |
| Comp. Wheel | 442293-0006 (1810440C1)(Ind. 47.5 mm, Exd. 75. mm, Trm 10.3, 6+6 Blades, Superback) $43.50 NEW IN STOCK |
| Back plate | 408045-0031 (408045-0030, 408045-0038, 408045-0039, 408045-0040)(1300016006, 104080001) $20.87 NEW IN STOCK |
| Heat Shield | 409299-0001 (409299-0000)(106040003) $15.70 NEW IN STOCK |
| Repair Kit | 468265-0000 (468265-0000UK, 3545831)(5000010041, 109030030) $69.50 NEW IN STOCK |
| Turbine Housing | 435066-0013 |
| Compressor Cover | 409589-0186 (432747-0004) |
| Turbine Housing AR | 0,84 |
| Actuator | 432340-0015 (432613-0013, 432613-0014) $129.50 |
| Settings Waste gate adjustment (pressure) | 1.100 - 1.170 bar |
| Settings Waste gate (lift shaft) | 1.00 mm |
| Gasket (turbine inlet) | 409039-0000 (409039-0001, 210019, 312617, 2405022, 7C7431)(1900000006) (Inox Steel) $13.52 |
| Gasket (turbine outlet) | 409196-0001 (210226) $17.71 |
| Gasket oil inlet | 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037(Paper) $4.48 |
| Gasket (oil outlet) | 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) $3.32 |
| Gasket Kit | 215116 (2090505042) |
| Manufacturer | Honeywell-Garrett |
1997- Iveco Eurocargo with 8060.45.4180/4380/5100/5180/5200/5270 Engine There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received. This part comes with ONE YEAR unlimited mileage warranty.Applications
Core Charge
Warranty
