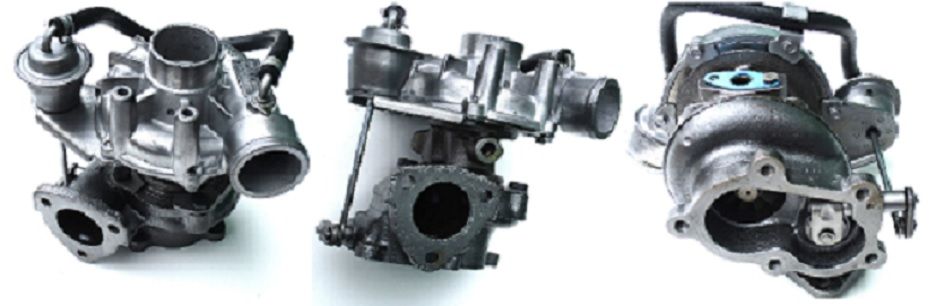

For Phone order call 818-506-8005 1-877-42TURBO(TOLL Free)1988- Jeep Cherokee RHB51P Turbo VA180069 VA59A
Product Description
| Part Number | VA180069 |
| OE number | 35242053F, 4796000 |
| Description | Jeep Cherokee, Opel/Vauxhall Frontera |
| V-SPEC. | VA59A |
| CHRA | VA810044 (VC810051)(1000040160) $350.00 NEW IN STOCK |
| Turbo Model | RHB51P-7000VPP12NHBRL3629CEZ, RHB51P |
| Displacement | 2.5L TD, 2499 ccm |
| KW | 115 HP |
| Fuel | Diesel |
| Angle α (compressor housing) | 0º |
| Angle β (turbine housing) | 330º |
| Bearing Housing | NN133391 (NN133397)(Oil Cooled)(1900011187B) $89.00 NEW IN STOCK |
| Turbine Wheel | NN131614 (Ind. 44. mm, Exd. 52.5 mm, Trm 7.16, 12 Blades)(1100016012) $96.06 NEW IN STOCK |
| Comp. Wheel | NN136710 (Ind. 35.6 mm, Exd. 52.5 mm, 6+6 Blades, Superback)(1200016505) NEW IN STOCK |
| Back plate | NN133021 (64T-002)(1800016033) $34.50 NEW IN STOCK |
| Heat shield Number | NN137055 (38T-013)(2030016019) $12.25 NEW IN STOCK |
| Repair Kit | NN139922 (509T-545)(5000080115) $68.00 NEW IN STOCK |
| Turbine Housing | NN139608 |
| Compressor Cover | NN133901 |
| Turbine Housing AR | 12 |
| Actuator | NH960951 (2061016827) |
| Settings Waste gate (pressure) | 1.781 bar |
| Settings Waste gate (lift shaft) | 2.00 mm |
| Gasket (turbine inlet) | 210229 (Steel) |
| Gasket (turbine outlet) | 210276 (2445051, 123385)(Stainless Steel) | Gasket (oil outlet) | 210636 (2445067, Paper) $3.21 |
| Gasket Kit | (2090505206) |
| Manufacturer | IHI |
1988- Jeep Cherokee Engine VM There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received. This part comes with ONE YEAR unlimited mileage warranty.Applications
Core Charge
Warranty
