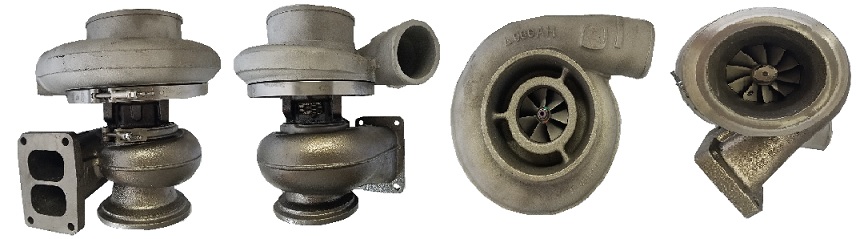

2000-08 John Deere Agricultural vehicle, Industrial PowerTech Diesel Engines S400 Turbo 171556

 2000-08 John Deere Agricultural vehicle, Industrial PowerTech Diesel Engines S400 Turbo 171556
Item# turbo-agricultural-john-deere-TC-171556
$1,156.78
Availability: Usually ships the next business day

Product Description


Part Number 171556
Previous Version171432, 171959
OE Number RE506706, SE501667, RE506331, RE508020, 506706
Description450CLC Excavator, Agricultural vehicle, Industrial Engine
Manufacturer Part Number 179589
CHRA176653 $756.78 NEW IN STOCK
Turbo Model S400, S400S056
Engine Manufacturer John Deere
Displacement12.5L, 12500 ccm
Engine6125HF070, 6125, 6507, 6508, 6125HF070 Powertech TIER 2
KW 240/322
RPM Max 2100
Fuel Diesel
Angle α (compressor housing) 356°
Angle β (turbine housing)43°
Bearing Housing 171781 (Oil Cooled) $314.97 NEW IN STOCK
Turbine Wheel171783 (314629)(Ind. 80.23 mm, Exd. 87.2 mm, 10 Blades) $156.00 NEW IN STOCK
Comp. Wheel171810 (317410, 316483)(Ind. 67.74 mm, Exd. 96.24 mm, 7+7 Blades, Superback) $97.47 NEW IN STOCK
Back plate316010 (1253400300) $19.38 NEW IN STOCK
Heat shield Number315964 $15.54 NEW IN STOCK
Repair Kit176391 (318396, 318397)(1253400752) $89.90 NEW IN STOCK
Turbine Housing179641 $296.48
Compressor Cover178859 $429.73
Gasket Kit318417 $17.44
Gasket (turbine inlet)409038-0001 (210835-0000, 9749)(R520685) $13.20
Gasket (turbine outlet)210222 (Stainless Steel)
Gasket (oil outlet)210060 (2475013)(409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585)(R105346) $4.48
Gasket (oil inlet)210019 (409266-0004, 129119, 3819900, 9737, 1S6595, 210019-0000, 201049, 409266-0003)(1900000035) $4.40
NOTEIntercooler, Rear Exhaust, Marked RE50633
ManufacturerBorg Warner - 3K - Schwitzer, BWTS USA

Applications

2000-08 John Deere Agricultural vehicle, Industrial Engine 6125H

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
