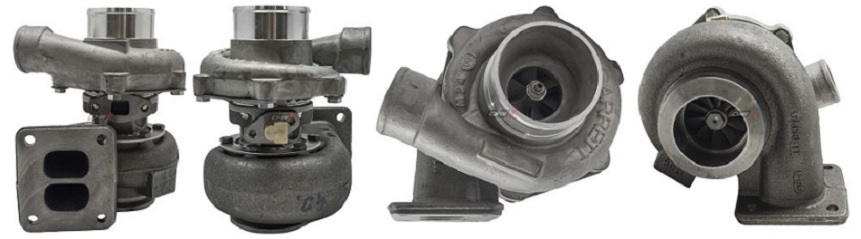

Part Number | 454044-5001S |
Previous Version | 454044-0001, 454044-9001, 454044-1 |
OE number | RE47705 |
Description | Tractor Tractor S5R1, MPE, 6300, M1/M2/M3 Agricultural Tractor, MR31 |
CHRA | 446311-0002 (446311-5002S)(RE46348) $550.00 NEW IN STOCK, MADE IN USA |
Turbo Model | T300-03 |
Engine | 4093T, 4039TJ-02, 4039TJ-03, 43039TJ-01, 4039T (300 SERIES) |
Engine Manufacturer | John Deere |
Displacement | 3.9L, 3900 ccm, 4 Cylinders |
KW | 57 |
RPM Max | 2300 |
Fuel | Diesel |
Angle α (compressor housing) | 352º |
Angle β (turbine housing) | 157º |
Bearing Housing | 430027-0021 (407285-0019, 430027-0051)(AR63781)(Oil Cooled)(1900011104) $69.00 NEW IN STOCK |
Turbine Wheel | 445812-0001 (E0NN6N678AA)(Ind. 54.5 mm, Exd. 61.5 mm, Trm 79, 10 Blades) $241.60 NEW IN STOCK |
Comp. Wheel | 446340-0003 (E0NN6N662AA)(Ind. 41.75 mm, Exd. 63. mm, Trm 44, 6+6 Blades)(1200016561) $144.86 NEW IN STOCK |
Back plate | 409629-0012 $58.39 NEW IN STOCK |
Heat shield Number | 409627-0000 (409627-0001)(1100030340, 103121-0000) $14.80 NEW IN STOCK |
Repair Kit | 468139-0000 (EFPN6K682AA)(1100030750, 5000010041)(Dynamic) $69.50 NEW IN STOCK |
Turbine Housing | 447182-0022 |
Compressor Cover | 446341-0003 |
Turbine Housing AR | 0.86 |
Gasket (turbine inlet) | 407294-0001 (310694, 303031063, 312617, 166618C, 8A0709, A58899, E5HN6N640AA, E7HZ6N640A, T30820) $13.84 |
Gasket (oil outlet) | 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) $3.32 |
Gasket Kit | 318418 (3534516, 3545576, 403240, 22505129)(2090505081) $16.60 |
Manufacturer | Honeywell-Garrett |
