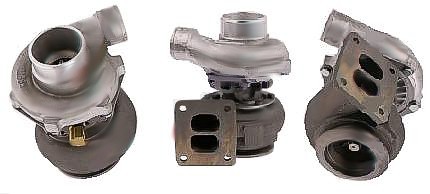

John Deere Agricultural T350-1 Turbo 466007-0007

John Deere Agricultural T350-1 Turbo 466007-0007
Item# turbo-agricultural-john-deere-TC-4660070007
$1,433.32
Availability: Usually ships the next business day

Product Description


Part Number 466007-5007S
Previous Version466007-0007, 466007-0004, 466007-7, 466007-0001, 466007-0006, 466007-0008, 466007-0010
OE number RE43426, RE45485, RE56616, RE56617, RE58711, RE63066, RE63068, SE502212
DescriptionTractor 6068
CHRA446346-0001 (446346-5001S, 408105-0423, 408105-5243S)(RE46386) $250.00 NEW IN STOCK, MADE IN USA
Turbo ModelT350-01
Engine6068 MW1/MW2
Engine ManufacturerJohn Deere
RPM Max2300
FuelDiesel
Angle α (compressor housing)156°
Angle β (turbine housing) 323°
Bearing Housing430027-0021 (407285-0019, 430027-0060)(AR63781, 3530636)(Oil Cooled)(1900011104) $69.00 NEW IN STOCK
Turbine Wheel446265-0001 (446905-0007)(20303)(Ind. 60.83 mm, Exd. 71.01 mm, Trm 10.4, 10 Blades)(1100040436, 1100016090) $128.00 NEW IN STOCK
Comp. Wheel446278-0002 (442476-0014)(Ind. 46. mm, Exd. 69. mm, Trm 3.75, 6+6 Blades, Superback) $52.00 NEW IN STOCK
Back plate409629-0013 (408045-0039, 763059-0003)(1300016001) $26.00 NEW IN STOCK
Heat shield Number446183-0001 $13.24 NEW IN STOCK
Repair Kit468100-0000 (468265-0000UK, 3545831, 468265-0000, 3524796, 168984, 310063, 188006-0000)(1100040760, 5000010041) $69.60 NEW IN STOCK
Turbine Housing446329-0007
Compressor Cover446296-0002
Turbine Housing AR 0.70
Gasket (turbine inlet)407294-0001 (310694, 312617)(Inox Steel) $13.84
Gasket (oil outlet)210021 (148062, 311496, 3519807, 210021-0000, 413671-0000, 409037-0000)(1900000027) $3.32
Gasket Kit215246 (2090505438)
ManufacturerHoneywell-Garrett

Applications

John Deere Agricultural Tractor with 6068 Engine

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
