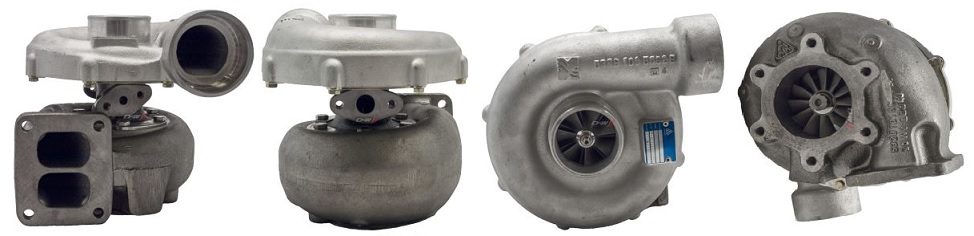

1995-07 Liebherr Earth Moving K29 Turbo 53299886713

1995-07 Liebherr Earth Moving K29 Turbo 53299886713
Item# turbo-earth-moving-liebherr-TC-53299886713
$1,951.53
Availability: Usually ships the next business day

Product Description


Part Number 53299886713
Previous Version5329-988-6713, 53299886713, 5329-988-6714, 5329 988 6713, 5329 988 6712, 53299886712, 53299886707
OE number5700107, 5700205, 5700206
Description Earth Moving
Manufacturer Part Number53299706713. 53299706712. 5329-970-6713. 5329-970-6712
CHRA53297100013 (5329-710-0013) $1,075.15 NEW IN STOCK
Turbo Model K29-3467MOA26.22GNAWB
Engine D926TI, D9408TI
Displacement 17.18L, 17180 ccm
KW 400/544
Fuel Diesel
Angle α (compressor housing)325/250°
Angle β (turbine housing)0/75°
Bearing Housing53291205004 (53291202101)(In. 73.4 mm, Exd. 82.1 mm, Trm 12.44, 12 Blades) $351.07 NEW IN STOCK
Turbine Wheel53291205004 (53291202101)(In. 91.3 mm, Exd. 72. mm, 10 Blades) $351.07 NEW IN STOCK
Comp. Wheel53291232215 (53291232006)(Ind. 58.3 mm, Exd. 87. mm, Trm 10.65, 7+7 Blades, Billet) $211.73 NEW IN STOCK
Back plate53291515704 (53291515702) $103.35 NEW IN STOCK
Heat shield Number53291652000 (53311652001) NEW IN STOCK
Repair Kit53297110001 (53287110009) $124.27 NEW IN STOCK
Turbine Housing53291016503 $667.95
Compressor Cover53291015031 (53291014900)
Turbine Housing AR 26
Replaced by53299886713
Gasket (turbine inlet)409123-0002 (310694) $24.81
Gasket (turbine outlet)210226 (Stainless Steel) $29.00
Gasket oil inlet 210023 (147837, 215234, 52231586500) $4.48
Gasket (oil outlet)210021 (148062, 311496) $4.48
Gasket Kit(2090505412)
NOTEReplacement turbo interchangeable
ManufacturerBorg Warner - 3K - Schwitzer

Applications

1995-07 Liebherr Earth Moving with D9408TI Engine

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
