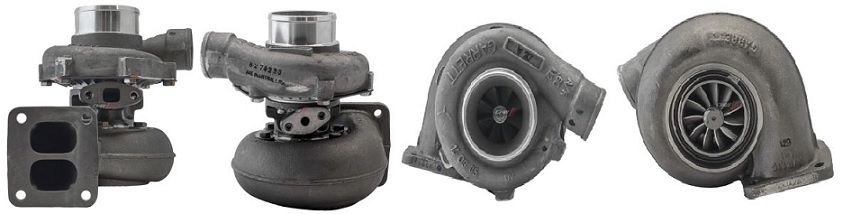

Navistar (IHC) Various 3LM Turbo 184171

Item# turbo-various-navistar-TC-184171
$980.00
Availability: Usually ships the next business day

Product Description


Part Number 184171
Previous Part Number182646, 156837, 182646,
OE number 687352C91, 684240C91, 684239C91, 684237C91, 674953C91, 684698C91, 684937C91, 691020C91, 691059C91, 702300C91, 675795C91, 674985C91, 684596C91, 684663C91
DescriptionNavistar (IHC) Various
Manufacturer Part Number184171, 409570-0012 , 409570-0011, 409570-0004, 409570-0003, 409570-0002, 409570-0013, 409570-0015, 409570-0016, 409570-0007, 409570-0009, 409570-0008, 409570-00014, 409570-0006, 409570-0004, 409570-0001
CHRA184180 (311457, 182647) $450.00 NEW IN STOCK, MADE IN USA
Turbo Model 3LM, 3LJ-249, 3LM-353, 3LJ-259, T04B18
EngineDT436, DT414/429/436/466, DT466/DT466B, DT573/DVT573
Interchange Garrett409570-0002, 409570-0003, 409570-0004, 409770-0006, 409770-0007, 409770-0008, 409770-0009, 409570-0011, 409570-0012, 409570-0013, 409770-0014, 409770-0015, 409770-0016, 409770-0017, 407480-0001, 407480-0002, 407480-0003, 407480-0004,
Angle α (compressor housing) 345°
Angle β (turbine housing) 0°
Bearing Housing193731 (430027-0051) $84.00 NEW IN STOCK
Turbine Wheel158396 (407276-0006, 407276-0019, 410188-0006, 410188-0037)(Ind. 57.65 mm, Exd. 75. mm, 12 Blades) $164.50 NEW IN STOCK
Comp. Wheel310741 (410514-0023)(Ind. 54. mm, Exd. 70. mm, Trm 59, 6+6 Blades) $49.00 NEW IN STOCK
Back plate197652 (310010, 311708, 4N6863, 6N1527, 104244-0000, 408045-0034, 408206-0002, 408045-0051)(1100040360) $47.50 NEW IN STOCK
Heat shield Number188276 (6N1531) (409299-0001) $44.29 NEW IN STOCK
Repair Kit318385/318368 (468100-0000)(6N7242) (1251133750) $124.00 NEW IN STOCK
Turbine Housing185862 (432183-0002)
Compressor Cover 185863 (408274-0223)
Turbine Housing AR1.15
Gasket (turbine inlet)407294-0001 (3901356, 3709861) (312617)(Inox Steel) $8.20
Gasket (oil outlet)210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)(Paper) $3.32
Gasket oil inlet210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper) $4.48
NOTEComplete replacement turbo only. TO4B core assembly and T/H kit also available - part no. 198406
ManufacturerBorg Warner - 3K - Schwitzer

Applications

Navistar (IHC) Various with DT414/429/436/466, DT466B, DT573, DVT573 Engine

Core Charge

There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
