Home > Force Inductions > TURBO CHARGERS > AGRICULTURAL/TRACTORS > NEW HOLLAND > 1993-02 New Holland Agricultural Bailer TO4E36 Turbo 452076-0001

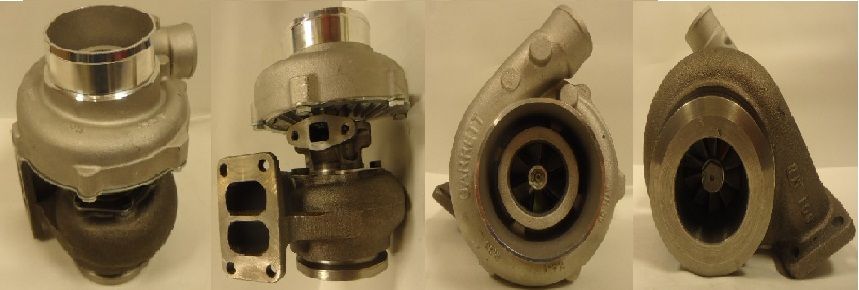

1993-02 New Holland Agricultural Bailer TO4E36 Turbo 452076-0001

Item# turbo-agricultural-new-holland-TC-4520760001S
$1,165.00
Availability: Usually ships the next business day

Product Description


Part Number 452076-5001S
Previous Version 452076-0001, 452076-1, 452076-5002S, 452076-5003S
OE number 87840268, F2NN6K682GA, 87840271, F2NN6K682GA, 87840269, F2NN6K682BB, F2NN6K682CB
DescriptionCASE NEW HOLLAND Agricultural, Industrial, Agricultural Bailer L925
CHRA447450-0043 (447450-5043S)(82851306) $450.00 NEW IN STOCK, MADE IN USA
Turbo Model T04E36, M24
EngineL925
Displacement7.5L, 7500 ccm, 6 Cylinders
KW120/142/150/157/165/180
FuelDiesel
RPM Max2500
Angle a (compressor housing) 0º
Angle ß (turbine housing) 78º
Bearing Housing430027-0028 (407285-0059, 430027-0067)(Oil Cooled) $47.00 NEW IN STOCK
Turbine Wheel446905-0002 (407276-0006, 407276-0019, 410188-0003, 410188-0006, 410188-0037, 446905-0005, 446905-0007, 446905-0010, 451309-0003, 451309-0004)(Ind. 74. mm, Exd. 64.61 mm, Trm 10.79, 11 Blades)(1100016090) $134.50 NEW IN STOCK
Comp. Wheel448048-0002 (Ind. 52.55 mm, Exd. 76.07 mm, Trm 47, 6+6 Blades, Billet) $144.90 NEW IN STOCK
Back plate408045-0031 (408045-0030, 408045-0038, 408045-0039, 408045-0040, 408045-0061)(1300016006) $20.87 NEW IN STOCK
Heat shield Number409299-0001 (311607, 409299-0000) $15.70 NEW IN STOCK
Repair Kit468265-0000 (468265-0000UK, 3545831)(1100040760, 5000010041) $69.50 NEW IN STOCK
Turbine Housing409568-0024
Compressor Cover434246-0001
Turbine Housing AR1
Gasket (turbine inlet)409039-0000 (210022-0000) $13.52
Gasket (oil outlet)210021 (409037-0000, 413671-0000, 3519807, 311496)(1900000027)
ManufacturerHoneywell-Garrett

Applications

1993-02 New Holland Agricultural Bailer L925 with CNH Engine

1993-02 New Holland Agricultural Tractor P396 with CNH Engine

1993-02 New Holland Agricultural/Industrial with CNH Engine

1993-02 Ford Agricultural Tractor P396, 8970 with CNH Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
